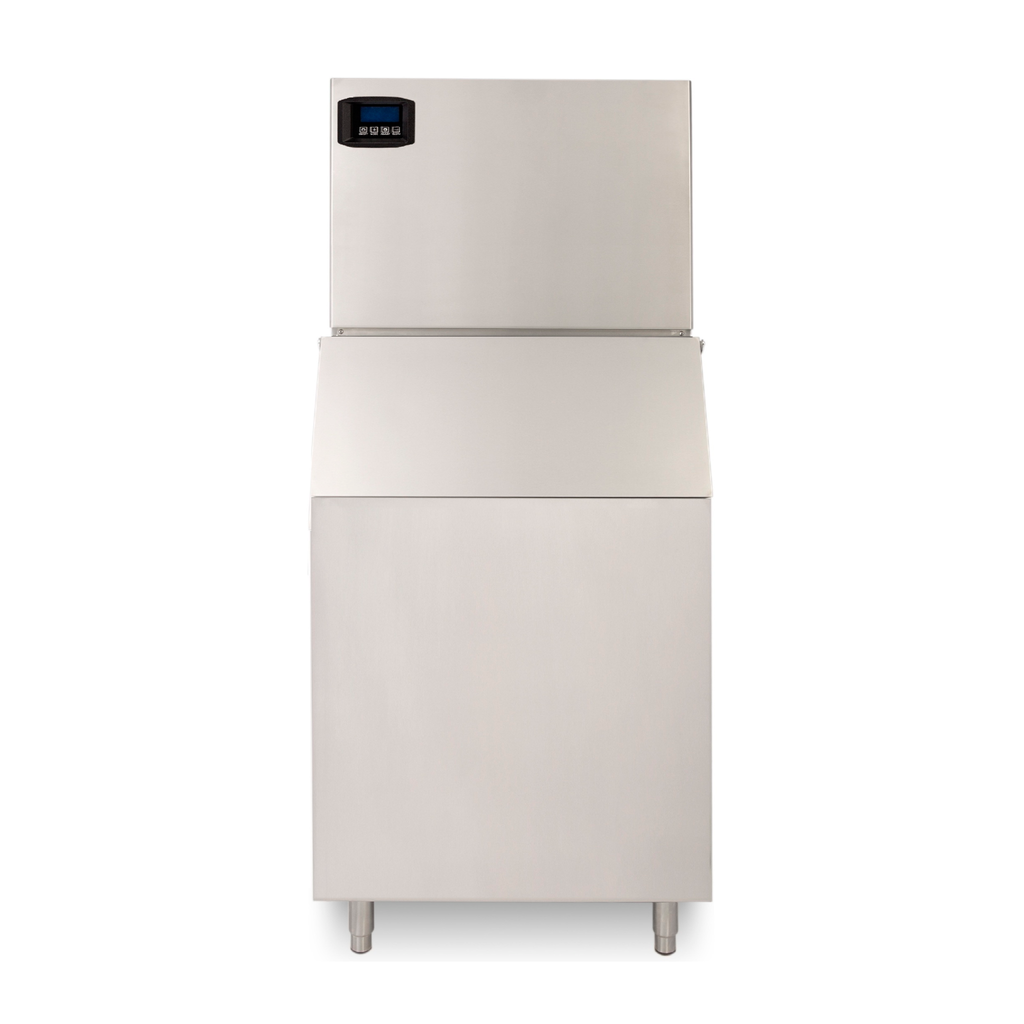

noriota ni500fb470 front view of commercial modular ice machine and ice storage bin all stainless steel

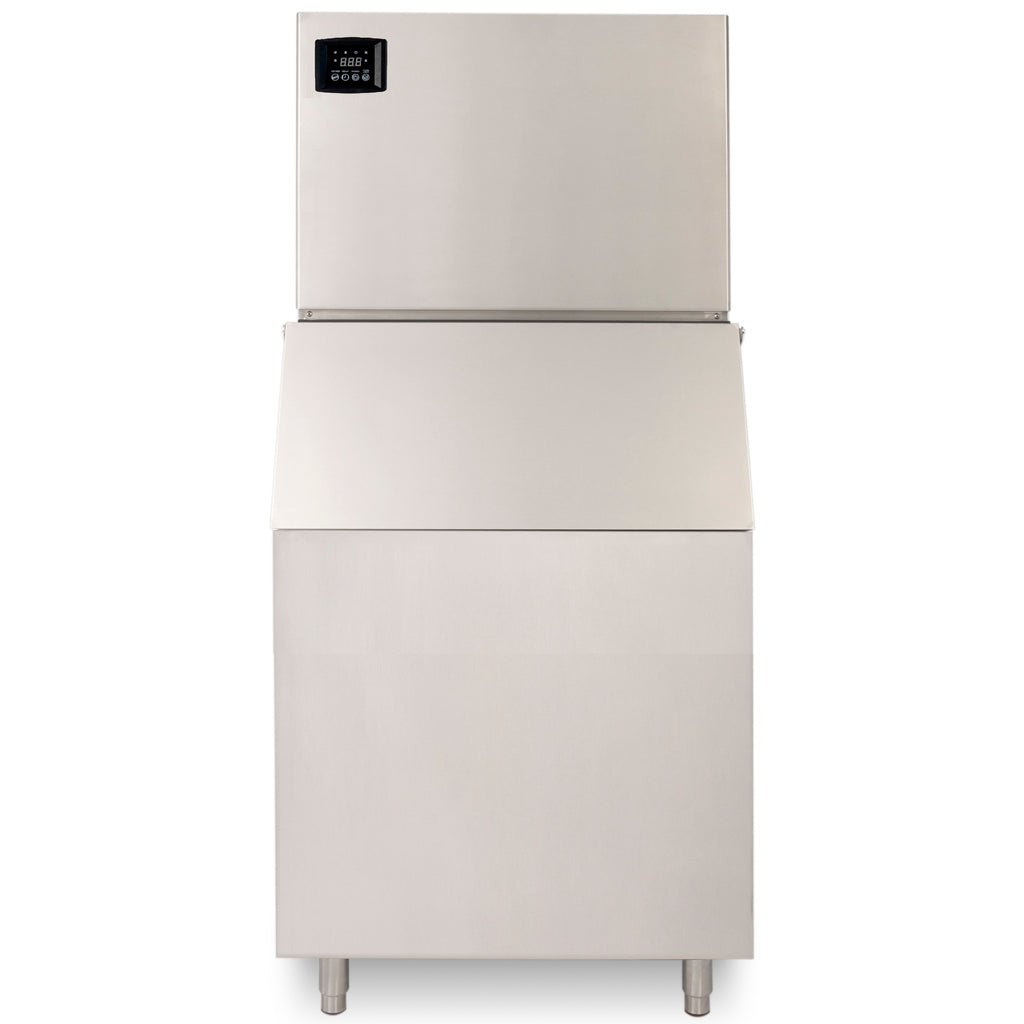

  • noriota ni500fb470 front view of commercial modular ice machine and ice storage bin all stainless steel

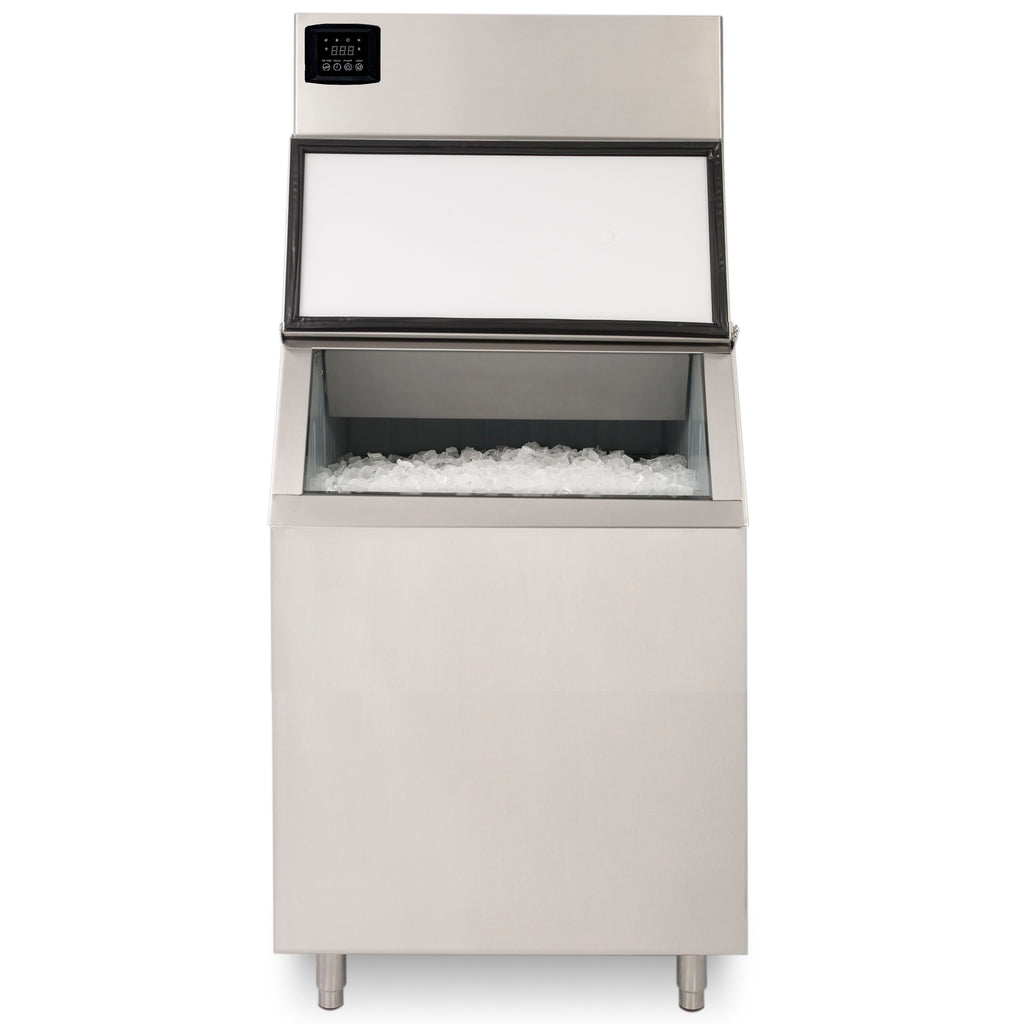

  • noriota ni500fb470 front view of commercial modular ice machine and ice storage bin full of ice all stainless steel

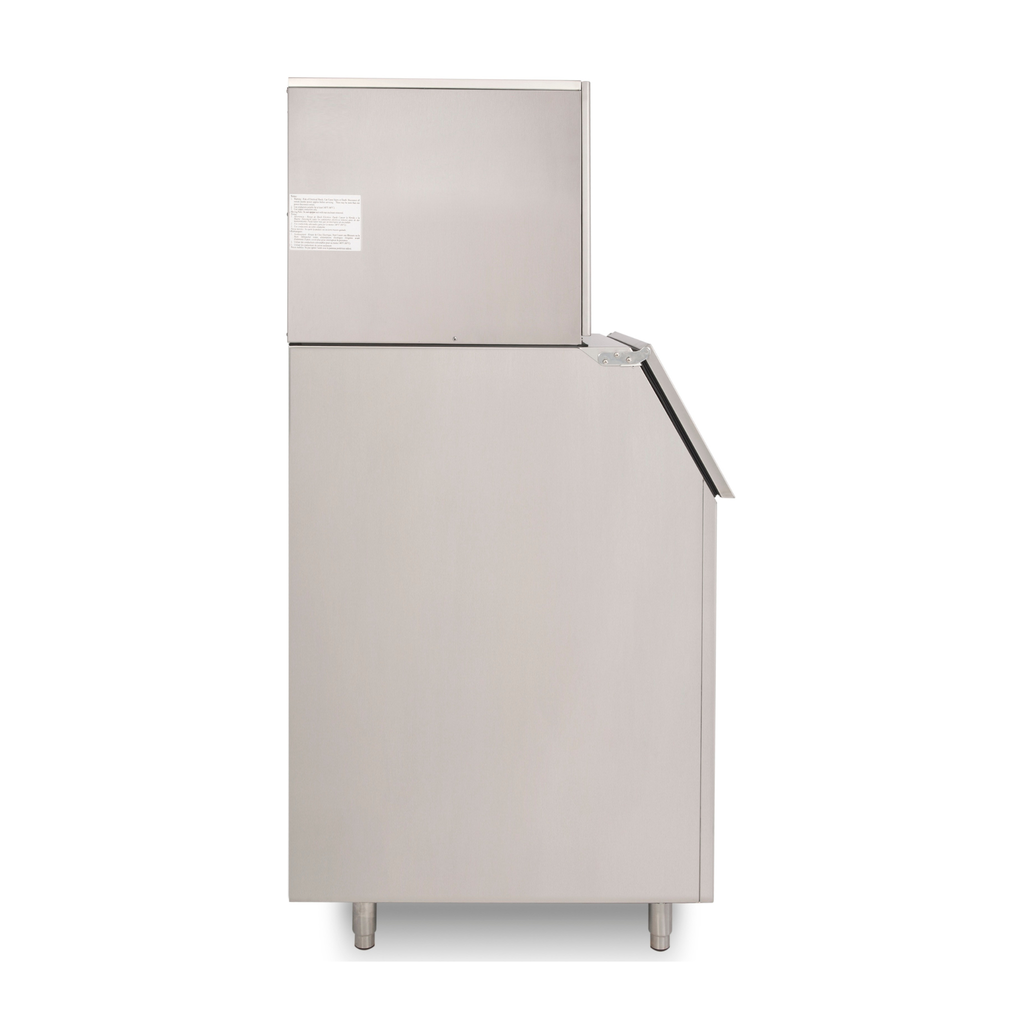

  • noriota ni500fb470 left side of commercial modular ice machine and ice storage bin all stainless steel

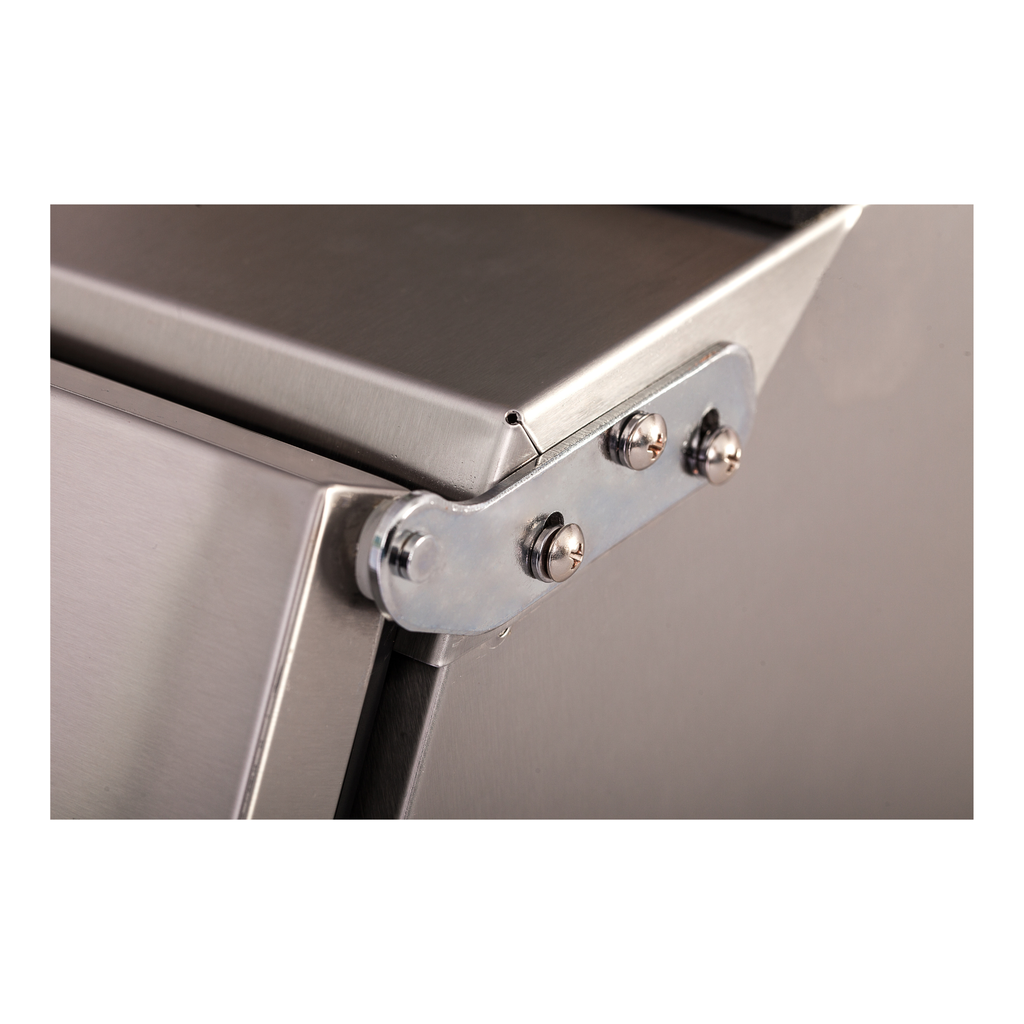

  • noriota ni500fb470 close up of hinge

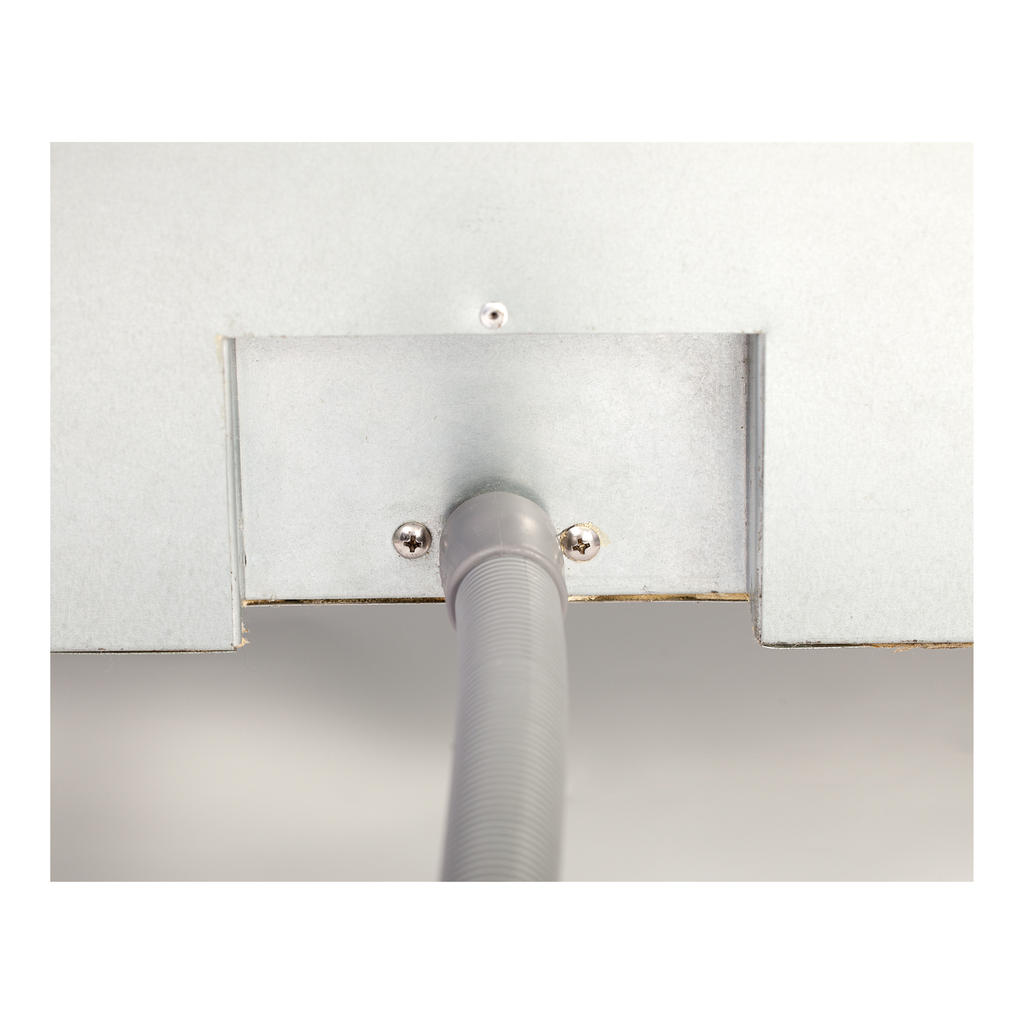

  • noriota ni500fb470 close up of drain

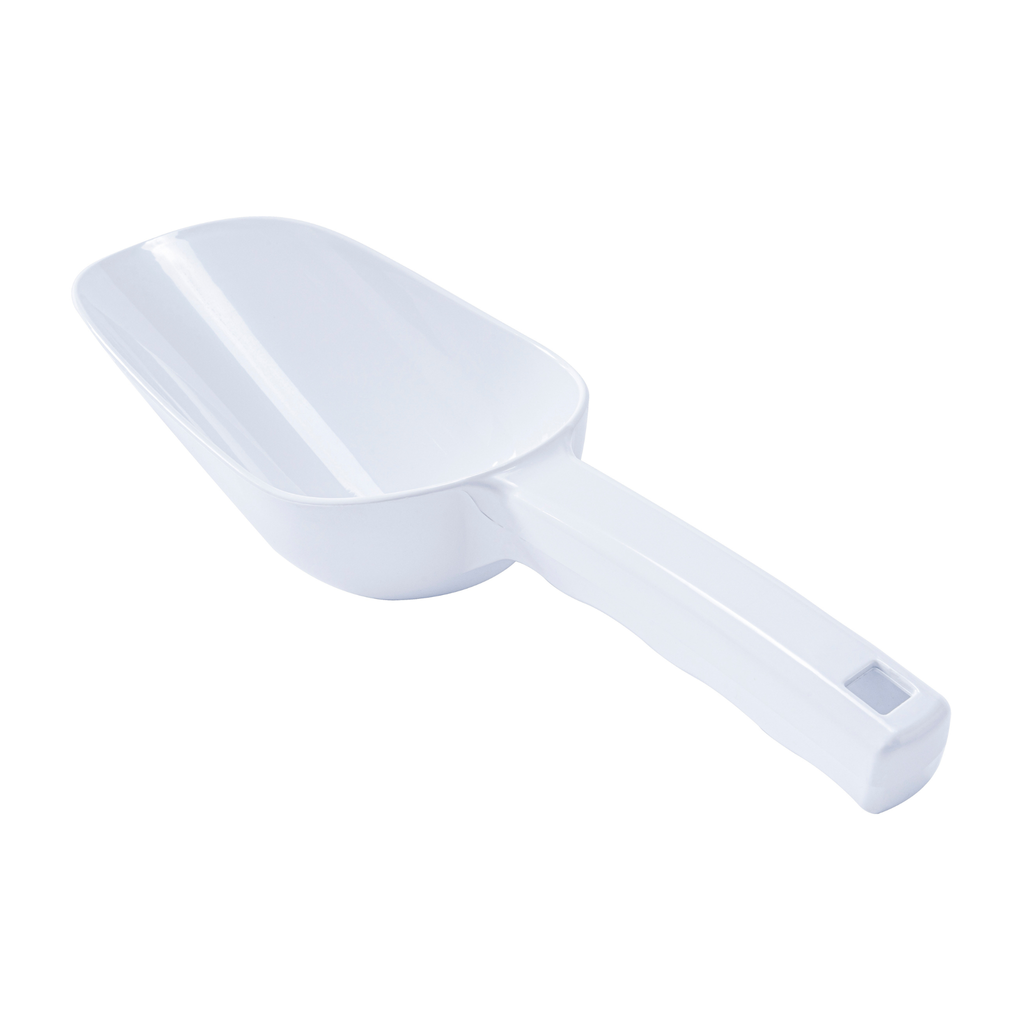

  • noriota ni500fb470 white plastic ice scoop

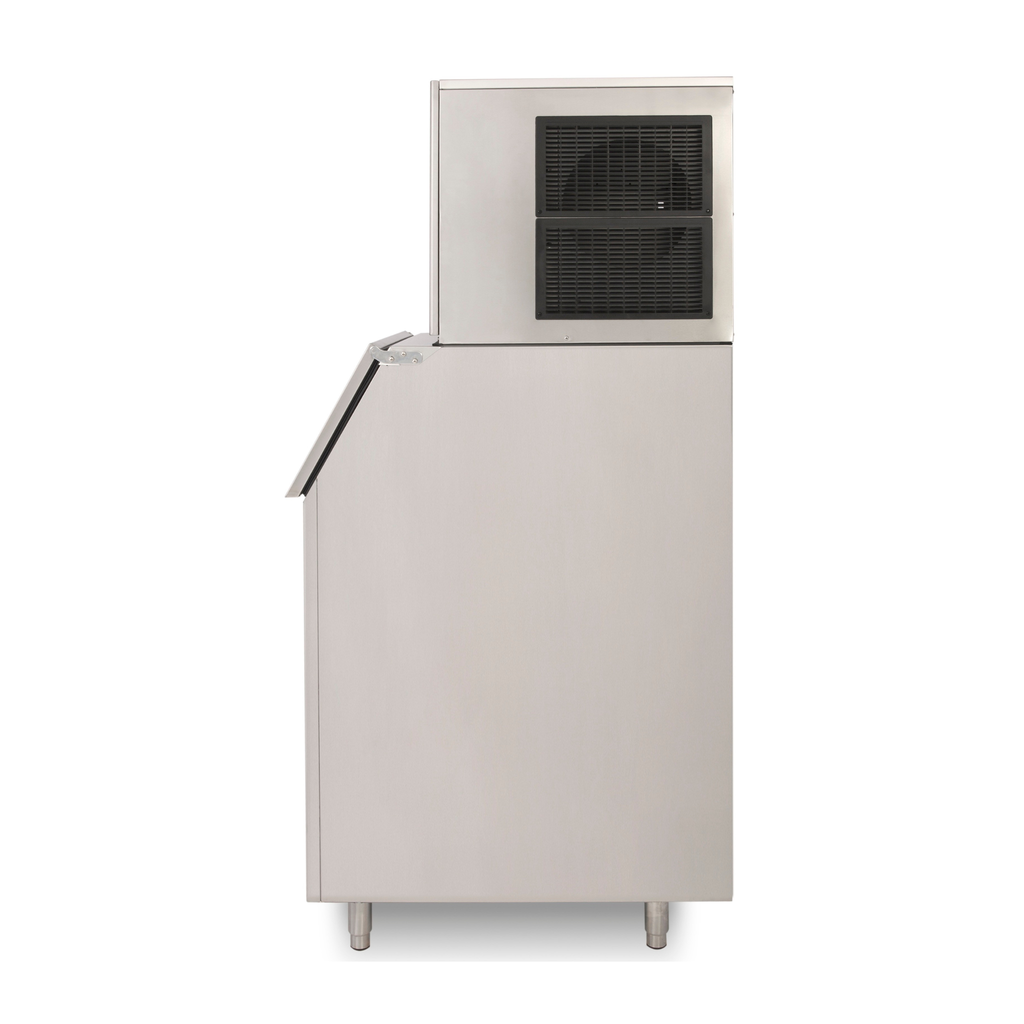

  • noriota ni500fb470 commercial modular ice maker with ice storage bin, right side
NI500FB470 Commercial Ice Machine, 500 lb, Full Cube, 30 in
$5,499.00

NI500FB470 is a commercial ice machine and storage bin combination designed for high-capacity ice production in demanding foodservice environments.

Key Specifications

  • Ice Production Per 24 Hours: 263Kg (521Lb)
  • Storage Capacity: ()
  • Ice Type: Full dice slab
  • Installation Type: Freestanding, modular
  • Refrigerant: R290
  • 115V / 60Hz / 1

Overall Dimensions:

152.5 cm W x 147.4 cm H x 147.3 cm H

60 in W x 58 in D x 58 in H

Product Weight: 94.5 kg / 208.3 lb

Certifications:

  • ETL Canada
  • ETL US
  • ETL Sanitation

Warranty: 5-year compressor
1-year parts & labour

Consistent Ice Output

Commercial Build

Clear Ice

Certified for Canada

Designed for reliable, high-volume ice production in busy commercial operations.



Built around a matched ice machine head and storage bin, NI500FB470 Commercial Ice Machine delivers consistent full cube ice output with ample storage capacity for operations that experience sustained or peak-period demand. The ice machine and bin combination is well suited for operations with steady demand requiring a balanced production-to-storage ratio for continuous service. Its 30-inch-wide configuration supports higher output applications while remaining efficient and space-conscious.



A vertical evaporator system promotes clearer ice by allowing impurities to drain away during the freezing cycle, while the advanced digital controller enables precise operation, system monitoring, and automatic self-cleaning functionality. Automatic shut-off and overflow protection help safeguard performance during extended operating periods.



The included ice storage bin features insulated construction to reduce melt and preserve ice quality, with a sanitary interior designed for commercial use. Adjustable leveling legs allow for proper installation on uneven floors and facilitate cleaning access beneath the unit.



Best suited for

  • High-volume restaurants and commercial kitchens
  • Bars and beverage-driven service operations
  • Hotels, banquet facilities, and event venues
  • Catering kitchens and commissaries
  • Replacement of existing ice machine systems where a 30-inch-wide bin is required

Frequently asked questions
Product Details
  • Ice Size: 2.2 x 2.2 x 2.2 CM (7/8 x 7/8 x 7/8 IN)
  • Colour: Stainless Steel

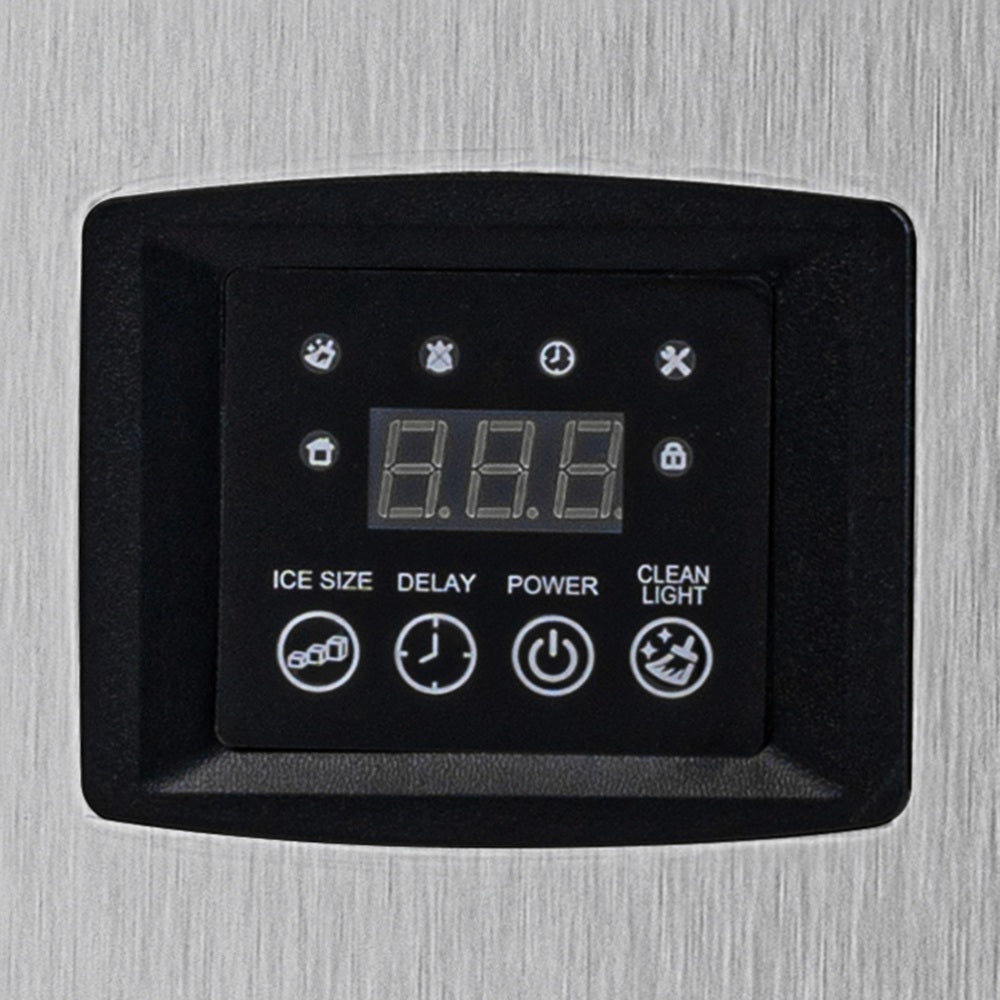

  • Controls: Advanced digital programmable control system
  • Defrost Type: Automatic
  • Lighting: Blue LED
  • Feet/Casters:
  • Water Usage: 50L (13.3 Gallons) per 45.5Kg (100Lb) of ice produced
  • # of Doors:
  • Door Type: N/A
  • Door Style: N/A
  • Handle:
  • Plug Type: NEMA 5-15P
  • Power Cord Length: 190 mm
  • Energy Usage: 5.5 kWh per 45.5Kg (100Lb) of ice produced

Shipping Dimensions:

165.5 cm W x 165.5 cm D x 182.7 cm H

65 in W x 65 in D x 72 in H

Shipping Weight: 134 kg / 295.4 lb

Need help choosing the right ice machine size?
Ice production needs vary widely by application. Our guide explains how to estimate daily ice requirements based on usage patterns, operating conditions, and storage considerations.

Read our guide: How to choose the right size commercial ice machine
What to Expect Before Delivery

Commercial ice machines require advance planning to ensure a smooth installation and reliable operation. Before your unit arrives, please review the following preparation steps carefully.

Delivery and handling

  • Commercial ice machines are shipped via LTL freight and are heavy. Plan ahead for safe movement from the delivery location to the installation site.
  • Depending on access, the unit may need to be uncrated before moving indoors. Ensure you have adequate manpower or material handling equipment to move the unit safely without damaging floors, doorways, or the equipment.
  • If you require a liftgate or other special delivery accommodations, note this in your order comments. Additional charges may apply depending on carrier requirements.

Installation location

  • Confirm that the installation area provides sufficient clearance for airflow, service access, and door or panel opening as required in user manual.
  • Verify the floor is level and capable of supporting the equipment weight when fully loaded.
  • Consider future access for routine cleaning, maintenance, and service.

Water supply

  • A dedicated potable water supply line is required for all commercial ice machines.
  • Confirm the water connection size, pressure, and flow rate meet minimum requirements outlined in the specification sheet or user manual.
  • Installing a water filtration system is strongly recommended to improve ice quality and reduce scale buildup, which can affect performance and longevity. The selected filter must be rated to support the required flow rate and operating water pressure for the specific model. Refer to the specification sheet for minimum water supply requirements when selecting a compatible filtration system.

Drainage

  • A gravity drain connection is required to remove meltwater and purge water during operation.
  • Verify that a properly sized drain is available at the installation location and complies with local plumbing codes.
  • Drain routing should allow for continuous downward flow and must not be restricted or submerged.

Electrical and utilities

  • Confirm the electrical supply matches the voltage, phase, and amperage requirements listed in the specification sheet or user manual and confirm again on the product rating label after delivery.
  • Electrical connections must comply with all local codes and regulations.

Professional installation

  • Commercial ice machines should be installed by a qualified technician or licensed tradesperson.
  • Proper installation is critical for performance, sanitation, and warranty coverage.

Preparing these items in advance helps prevent installation delays, protects your equipment, and ensures optimal ice production from day one.
Upon Delivery

At the time of delivery:

  • Inspect the shipment before signing the Bill of Lading
  • If visible damage is present, note it clearly on the Bill of Lading
  • If damage is significant and you are not willing to accept the unit, the shipment should be refused at delivery
  • If any damage is observed, document it with clear photos, as this helps us work quickly with the freight carrier to support resolution

After unpacking:

  • If concealed damage is discovered after opening the packaging, contact Noriota immediately
  • Do not discard packaging until the unit has been fully inspected and confirmed free of damage
  • Document any concealed damage with clear photos, as timely documentation helps us assist with carrier coordination
  • Confirm the model number, serial number, and rating label match your order.
  • Keep the user manual and documentation accessible for installation and future reference.

In all cases of shipping damage, whether visible or concealed, please contact Noriota immediately upon discovery so we can assist with next steps and carrier coordination.
Warranty

This commercial ice machine is covered by a limited manufacturer’s warranty.

  • 2 years parts and labour for normal commercial use
  • Additional 4 years compressor parts-only coverage, for a total of 5 years from the date of installation

The extended compressor warranty applies to defects in materials or workmanship of the sealed refrigeration compressor and is provided on a parts-only basis after the first year.

Full terms, conditions, exclusions, and claim procedures are outlined in our warranty policy.

Register your product to activate warranty coverage: Warranty Registration

View the full warranty policy
Shipping & Returns

Shipping

Orders ship directly from our warehouse in Bolton, Ontario using the most appropriate delivery method based on the product and destination.

Most in-stock orders are prepared for shipment within 1–2 business days. Delivery times vary by item type and location. Larger items may ship via freight and are typically delivered curbside.

Tracking information will be provided once your order ships. Delivery appointments may be required for certain shipments.

Please inspect all deliveries upon arrival and notify us promptly of any damage or missing items.

Returns

Returns are accepted within 30 days of receipt for unused products in original packaging.

Original shipping charges are non-refundable. Customers are responsible for return shipping costs. A restocking fee may apply to non-defective returns.

If your item arrives defective or incorrect, please contact us so we can assist.
Downloads

Specification Sheet (PDF)
