Name: NI220F Commercial Undercounter Ice Machine, 220 lb, Full Cube
Brand: Noriota
SKU: NI200F
Price: 2999.00 CAD
Availability: OutOfStock

noriota ni220f commercial ice maker front view

NI220F Commercial Undercounter Ice Machine, 220 lb, Full Cube

$2,999.00

NI220F is a high-output commercial undercounter ice machine built for continuous ice production in busy foodservice operations.

Key Specifications

Ice Production Per 24 Hours: 100 kg (220 lb)
Storage Capacity: 40 kg (88 lb)
Ice Type: Full dice slab
Installation Type: Freestanding
Refrigerant: R290
115V / 60Hz / 1

Overall Dimensions:

61 cm W x 61 cm H x 98.6 cm H

24 in W x 24 in D x 39 in H

Product Weight: 64 kg / 141 lb

Certifications:

ETL Sanitation
ETL Canada
ETL US

Warranty: 2 years parts & labour, 5 year compressor (parts-only)

Consistent Ice Output

Commercial Build

Clear Ice

Certified for Canada

Reliable commercial ice production for higher-volume service.

Designed for continuous operation in demanding foodservice settings, the NI220F commercial undercounter ice machine combines increased production capacity with a self-contained undercounter format suited for restaurants and bars with steady ice demand. Its adjustable design supports installation under standard-height counters using adjustable feet, or under bar-height counters using adjustable legs, allowing flexibility across different service environments.

Constructed with durable stainless steel components and equipped with advanced controls and automated operating functions, the NI220F is designed to maintain consistent performance during extended service periods with minimal operator intervention.

With a 220 lb daily ice production capacity, this model is well suited for operations that require reliable ice availability throughout long service hours.

Best suited for:

Restaurants with high beverage volume
Bars and cocktail-focused operations
Catering and banquet kitchens
Installations under standard-height or bar-height counters

Frequently asked questions

Ice Size: 2.2 x 2.2 x 2.2 CM (7/8 x 7/8 x 7/8 IN)
Colour: Stainless Steel
Controls: Advanced digital programmable control system
Defrost Type: Automatic
Lighting: Blue LED

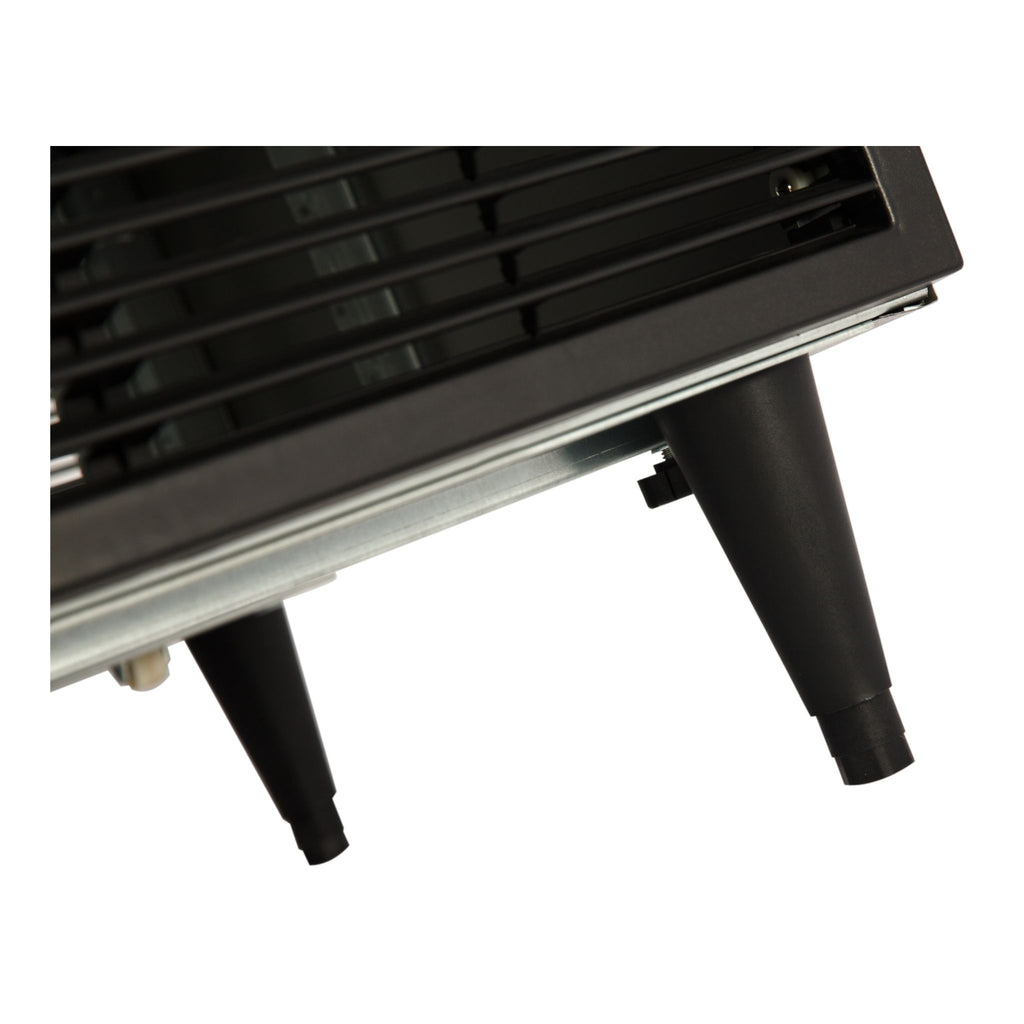

Feet/Casters: Adjustable leveling legs 15.24cm (6")
Water Usage: 50 L (13.3 Gallons) per 45.5 kg (100 lb) of ice produced
# of Doors: 1
Door Type: Top sliding
Door Style: Black plastic
Handle: Integrated in door
Plug Type: NEMA 5-15P
Power Cord Length: 190 cm
Energy Usage: 8.65 kWh per 45.5. kg (100 lb) of ice produced

Shipping Dimensions:

65 cm W x 67 cm D x 88.5 cm H

25 in W x 26 in D x 39 in H

Shipping Weight: 71.5 kg / 157.6 lb

Need help choosing the right ice machine size?
Ice production needs vary widely by application. Our guide explains how to estimate daily ice requirements based on usage patterns, operating conditions, and storage considerations.

Read our guide: How to choose the right size commercial ice machine

Commercial ice machines require advance planning to ensure a smooth installation and reliable operation. Before your unit arrives, please review the following preparation steps carefully.

Delivery and handling

Commercial ice machines are shipped via LTL freight and are heavy. Plan ahead for safe movement from the delivery location to the installation site.
Depending on access, the unit may need to be uncrated before moving indoors. Ensure you have adequate manpower or material handling equipment to move the unit safely without damaging floors, doorways, or the equipment.
If you require a liftgate or other special delivery accommodations, note this in your order comments. Additional charges may apply depending on carrier requirements.

Installation location

Confirm that the installation area provides sufficient clearance for airflow, service access, and door or panel opening as required in user manual.
Verify the floor is level and capable of supporting the equipment weight when fully loaded.
Consider future access for routine cleaning, maintenance, and service.

Water supply

A dedicated potable water supply line is required for all commercial ice machines.
Confirm the water connection size, pressure, and flow rate meet minimum requirements outlined in the specification sheet or user manual.
Installing a water filtration system is strongly recommended to improve ice quality and reduce scale buildup, which can affect performance and longevity. The selected filter must be rated to support the required flow rate and operating water pressure for the specific model. Refer to the specification sheet for minimum water supply requirements when selecting a compatible filtration system.

Drainage

A gravity drain connection is required to remove meltwater and purge water during operation.
Verify that a properly sized drain is available at the installation location and complies with local plumbing codes.
Drain routing should allow for continuous downward flow and must not be restricted or submerged.

Electrical and utilities

Confirm the electrical supply matches the voltage, phase, and amperage requirements listed in the specification sheet or user manual and confirm again on the product rating label after delivery.
Electrical connections must comply with all local codes and regulations.

Professional installation

Commercial ice machines should be installed by a qualified technician or licensed tradesperson.
Proper installation is critical for performance, sanitation, and warranty coverage.

Preparing these items in advance helps prevent installation delays, protects your equipment, and ensures optimal ice production from day one.

At the time of delivery:

Inspect the shipment before signing the Bill of Lading
If visible damage is present, note it clearly on the Bill of Lading
If damage is significant and you are not willing to accept the unit, the shipment should be refused at delivery
If any damage is observed, document it with clear photos, as this helps us work quickly with the freight carrier to support resolution

After unpacking:

If concealed damage is discovered after opening the packaging, contact Noriota immediately
Do not discard packaging until the unit has been fully inspected and confirmed free of damage
Document any concealed damage with clear photos, as timely documentation helps us assist with carrier coordination
Confirm the model number, serial number, and rating label match your order.
Keep the user manual and documentation accessible for installation and future reference.

In all cases of shipping damage, whether visible or concealed, please contact Noriota immediately upon discovery so we can assist with next steps and carrier coordination.

This commercial ice machine is covered by a limited manufacturer’s warranty.

2 years parts and labour for normal commercial use
Additional 4 years compressor parts-only coverage, for a total of 5 years from the date of installation

The extended compressor warranty applies to defects in materials or workmanship of the sealed refrigeration compressor and is provided on a parts-only basis after the first year.

Full terms, conditions, exclusions, and claim procedures are outlined in our warranty policy.

Register your product to activate warranty coverage: Warranty Registration

View the full warranty policy

Shipping

Orders ship directly from our warehouse in Bolton, Ontario using the most appropriate delivery method based on the product and destination.

Most in-stock orders are prepared for shipment within 1–2 business days. Delivery times vary by item type and location. Larger items may ship via freight and are typically delivered curbside.

Tracking information will be provided once your order ships. Delivery appointments may be required for certain shipments.

Please inspect all deliveries upon arrival and notify us promptly of any damage or missing items.

Returns

Returns are accepted within 30 days of receipt for unused products in original packaging.

Original shipping charges are non-refundable. Customers are responsible for return shipping costs. A restocking fee may apply to non-defective returns.

If your item arrives defective or incorrect, please contact us so we can assist.

Specification Sheet (PDF)
