Name: NUI15COPSS Built-In Undercounter Indoor / Outdoor Crescent Cube Ice Maker, 15 in
Brand: Noriota
SKU: NUI15COPSS
Price: 1899.00 CAD
Availability: OutOfStock

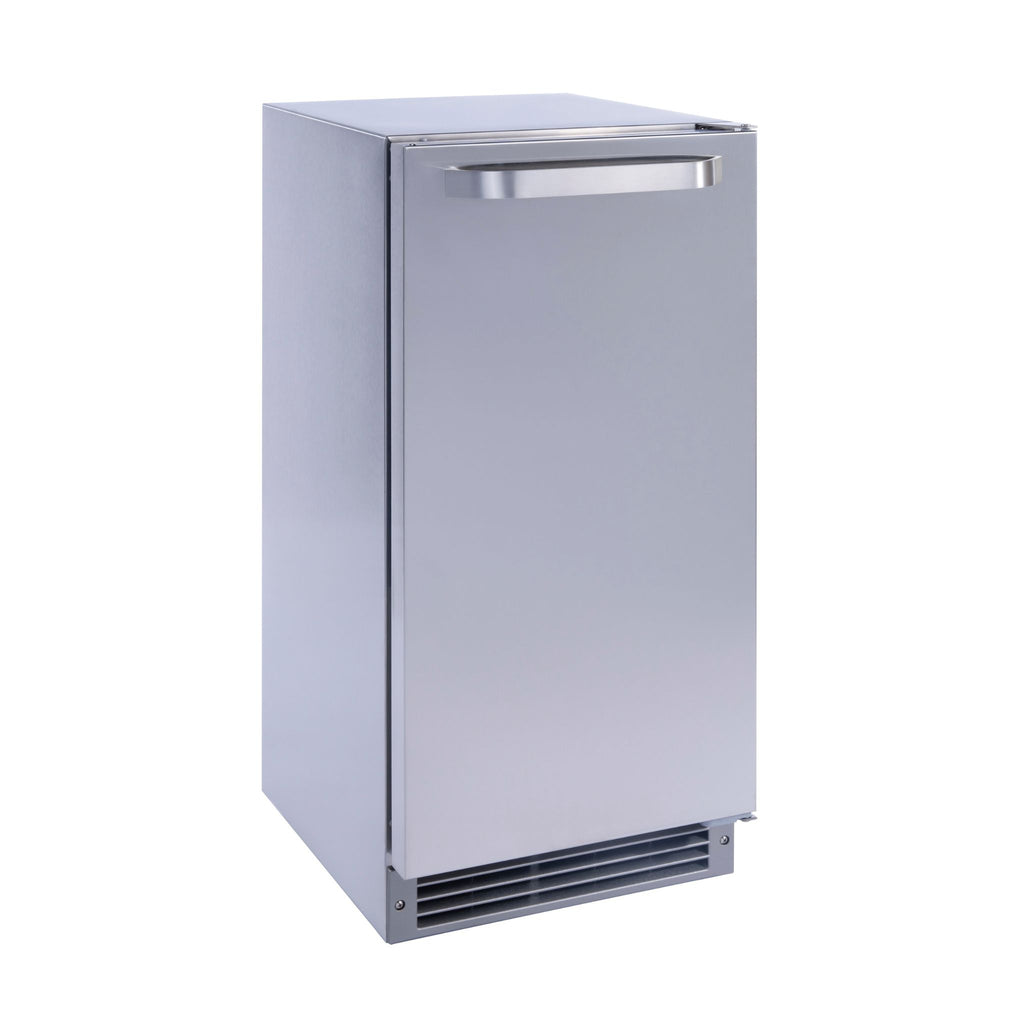

Noriota NUI15COPPS Built in crescent ice maker front iew

NUI15COPSS Built-In Undercounter Indoor / Outdoor Crescent Cube Ice Maker, 15 in

$1,899.00

NUI15COPSS is a premium built-in crescent cube ice maker designed for indoor or outdoor installation, with a stainless steel door and overlay panel-ready configuration for seamless integration.

Key Specifications

Ice Production: 11.4 kg (25 lb) Per Day
Storage Capacity: 10 kg (22 lb)
Ice Type: Cresent ice cube
Installation Type: Free standing or built-in
Usage: Indoor or outdoor
Drain: No drain required, keeps ice frozen
Exterior Material: Stainless steel
Refrigerant: R600a
115V / 60Hz / 1Ph

Overall Dimensions:

37.8 cm W x 48 cm H x H

14.9 in W x 24.5 in D x H

Product Weight: 29.5 kg / 65 lb

Certifications:

ETL Canada
UL US

Warranty: 1 year parts and labour, 5 year compressor (parts-only)

No Drain Required

Indoor & Outdoor

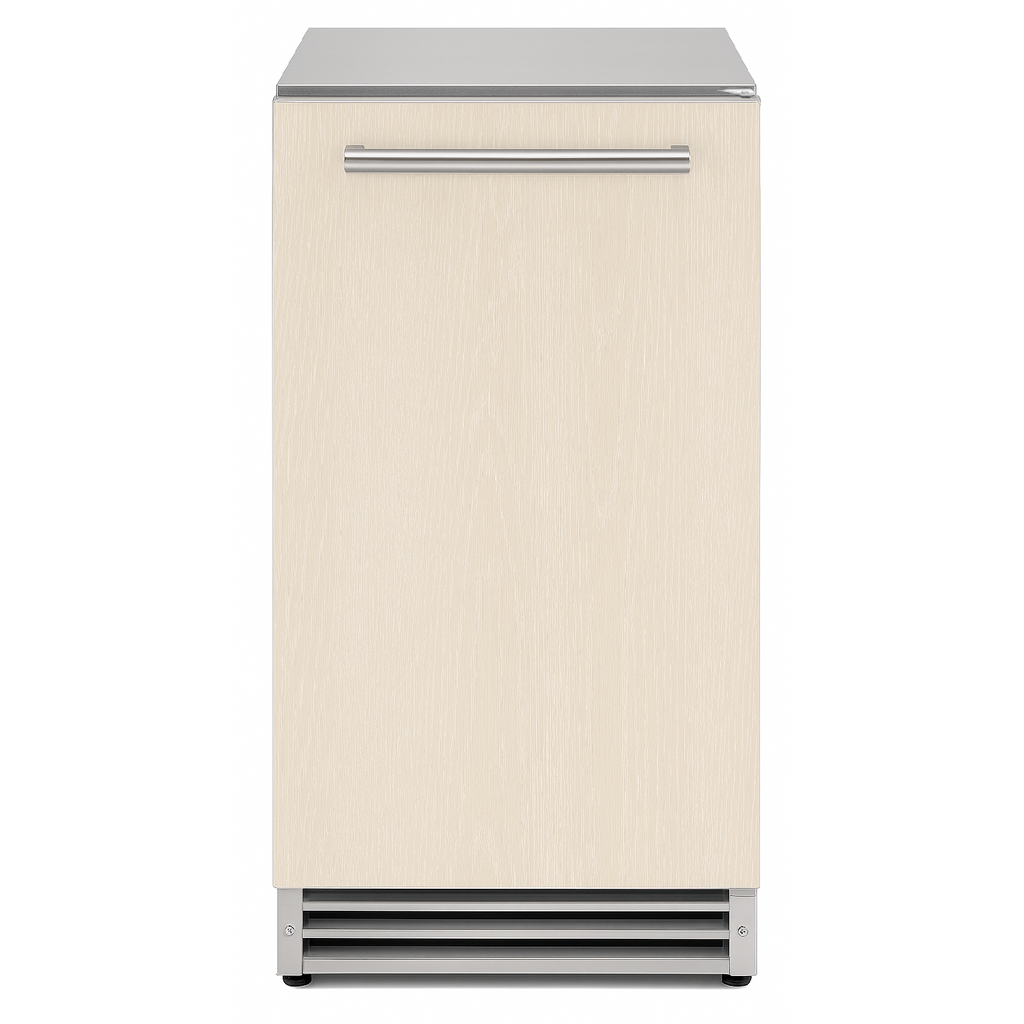

SS & Panel Ready Door

Certified for Canada

Colour: Stainless Steel
Installation Type: Free standing or built-in
Built-In Cabinet Types: Inset, frameless - overlay and framed cabinet styles
Ventilation: Front breathing - No additional clearance required around the sides, minimal clearance required in rear
Controls: ON/OFF switch conveniently located behind door

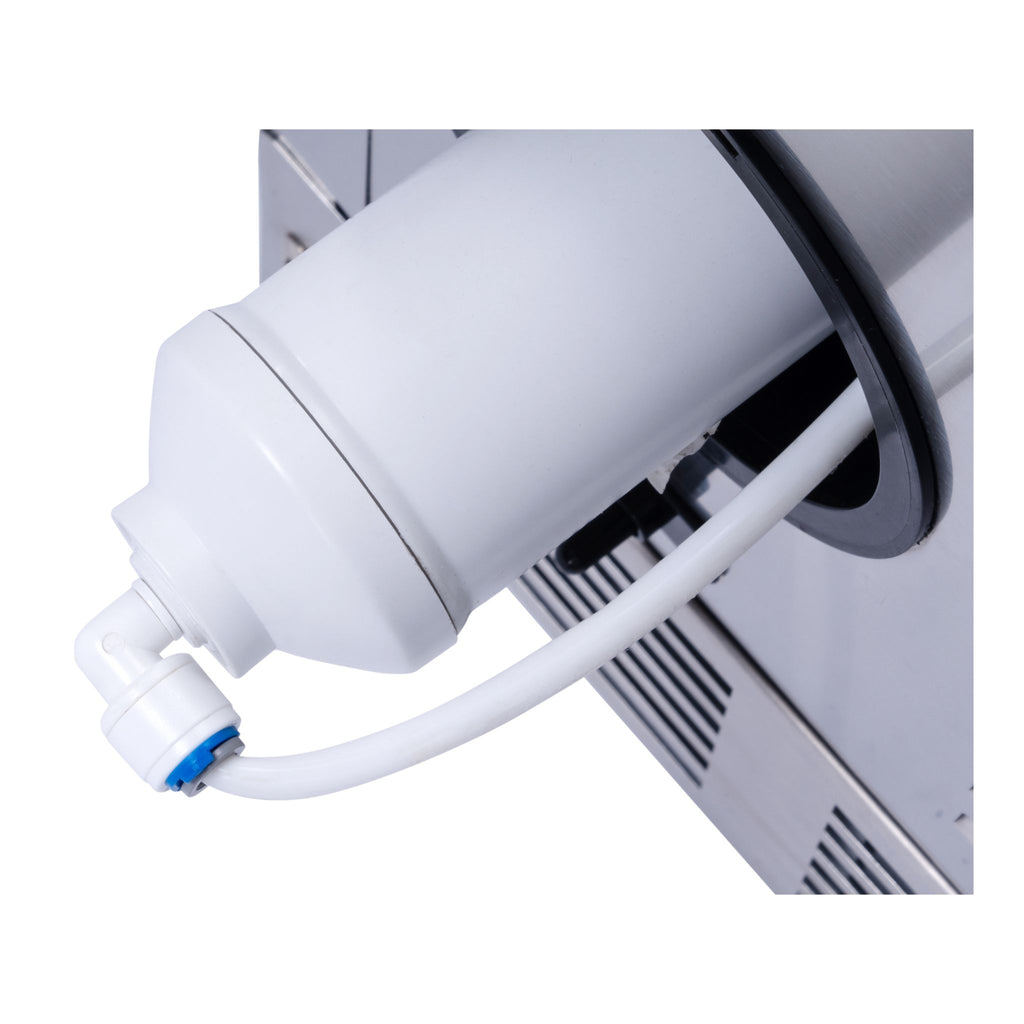

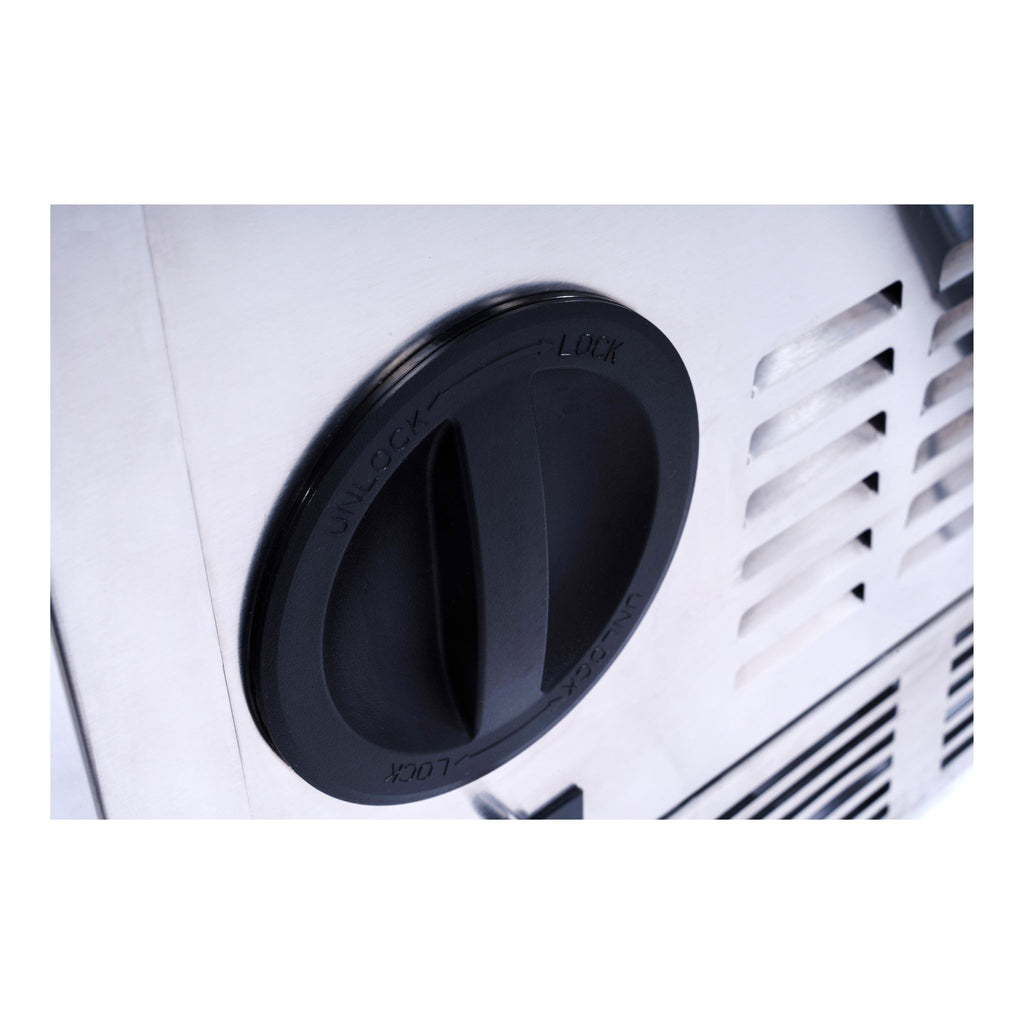

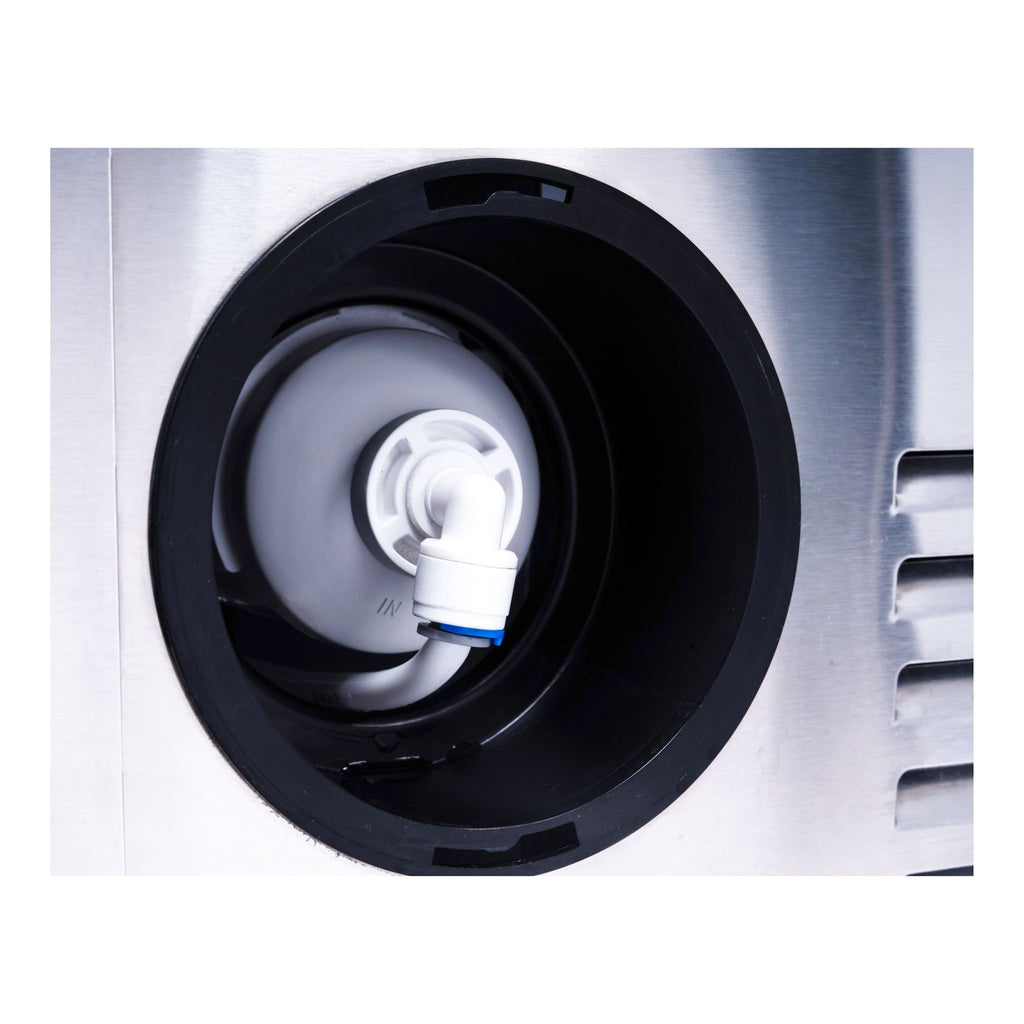

Water Filter: Yes, Integrated
Sabbath Mode: No
Refrigerant: R600a
Lighting: No
Feet/Castors: Adjustable leveling feet 1.6-4.2 cm (0.6-1.7 in)
Ambient Temp. Operating Range: 10 °C-43 °C (50℉-110 ℉)

ICE PRODUCTION AND STORAGE

Ice Production Capacity: 11.4 kg (25 lb) Per Day
Storage Capacity: 10 kg kg / 22 lb lb
Ice Type: Cresent ice cube
Ice Size: 1.3 x 2 x 6 cm (1/2 x 3/4 x 2-3/8 in)
Water Usage:

DOOR(S)

# of Doors: 1
Door Type: Stainless steel, can be removed for installation of custom 19MM (3/4IN) wood panel
Door Style: Swing, right hinged (field reversible to left hinged)
Maximum Opening: 135°, door and handle will not hit adjacent cabinetry
Hinge: Stainless steel with built-in door close assist to ensure door closure
Door Lock: No
Door Gasket: Black, magnetic and replaceable
Handle: 1.9 cm (3/4 in) Diameter stainless steel

Premium crescent cube ice delivered with commercial-grade construction for built-in indoor and outdoor applications.

Designed for high-end kitchens and refined entertaining spaces, the NUI15COPSS built-in crescent cube ice maker combines the durability and engineering discipline of commercial ice systems with the clean aesthetics and installation flexibility expected in premium residential environments.

A zero-clearance, front-vented design allows the unit to install flush under standard counters, while the door system supports both a stainless steel finish and an overlay panel-ready configuration to accept a custom wood panel matching surrounding cabinetry. Its shallow 48 cm (18.9 in) cabinet depth enables installation in credenzas, bar cabinetry, and other shallow applications that cannot accommodate standard-depth appliances.

Unlike clear ice machines, this model stores ice in a frozen state, eliminating the need for a drain connection. This freezer-style design allows installation in a wider range of locations where drainage access is not available. Its unique design allows for exceptionally quiet operation compared to clear ice makers that rely on continuous water circulation.

Rated for both indoor and outdoor use, this crescent cube ice maker delivers dependable performance, flexible placement, and quiet operation wherever premium ice is needed.

Best suited for

High-end residential kitchens and entertaining spaces
Quiet indoor environments where low operating noise is important
Credenzas, bar cabinetry, and shallow-depth installations
Outdoor kitchens and covered patios without drain access
Office break rooms and executive suites

Ice Size: 1.3 x 2 x 6 cm (1/2 x 3/4 x 2-3/8 in)
Built-In Cabinet Types: Inset, frameless - overlay and framed cabinet styles
Ventilation: Front breathing - No additional clearance required around the sides, minimal clearance required in rear
Controls: ON/OFF switch conveniently located behind door
Water Filter: Yes, Integrated
Sabbath Mode: No
Lighting: No
Feet/Castors: Adjustable leveling feet 1.6-4.2 cm (0.6-1.7 in)
Ambient Temp. Operating Range: 10 °C-43 °C (50℉-110 ℉)
Plug Type: NEMA 5-15P
Power Cord Length: 180 cm

DOOR

# of Doors: 1
Door Type: Stainless steel, can be removed for installation of custom 19MM (3/4IN) wood panel
Door Style: Swing, right hinged (field reversible to left hinged)
Maximum Opening: 135°, door and handle will not hit adjacent cabinetry
Hinge: Stainless steel with built-in door close assist to ensure door closure
Door Lock: No
Door Gasket: Black, magnetic and replaceable
Handle: 1.9 cm (3/4 in) Diameter stainless steel

Toe-Kick Height: 7.6 cm / 3 in

Cutout Dimensions:

38.1 cm W x 61 cm D x 88.5-88 cm H

15 in W x 24 in D x 33.7-34.7 in H

Shipping Dimensions:

46.2 cm W x 53.7 cm D x 96.5 cm H

18.1 in W x 21.1 in D x 38 in H

Shipping Weight: 35.7 kg / 78 lb

Our ice machines require advance planning to ensure a smooth installation and reliable operation. Before your unit arrives, please review the following preparation steps carefully.

Delivery and handling

Most ice machines are shipped via LTL freight and are heavy. Plan ahead for safe movement from the delivery location to the installation site.
Depending on access, the unit may need to be uncrated before moving indoors. Ensure you have adequate manpower or material handling equipment to move the unit safely without damaging floors, doorways, or the equipment.
If you require a liftgate or other special delivery accommodations, note this in your order comments. Additional charges may apply depending on carrier requirements.

Installation location

Confirm that the installation area provides sufficient clearance for airflow, service access, and door or panel opening as required in user manual.
Verify the floor is level and capable of supporting the equipment weight when fully loaded.
Consider future access for routine cleaning, maintenance, and service.

Water supply

A dedicated potable water supply line is required for all commercial ice machines.
Confirm the water connection size, pressure, and flow rate meet minimum requirements outlined in the specification sheet or user manual.
Installing a water filtration system is strongly recommended to improve ice quality and reduce scale buildup, which can affect performance and longevity. The selected filter must be rated to support the required flow rate and operating water pressure for the specific model. Refer to the specification sheet for minimum water supply requirements when selecting a compatible filtration system.

Drainage

A gravity drain connection is required to remove meltwater and purge water during operation.
Verify that a properly sized drain is available at the installation location and complies with local plumbing codes.
Drain routing should allow for continuous downward flow and must not be restricted or submerged.

Electrical and utilities

Confirm the electrical supply matches the voltage, phase, and amperage requirements listed in the specification sheet or user manual and confirm again on the product rating label after delivery.
Electrical connections must comply with all local codes and regulations.

Professional installation

Commercial ice machines should be installed by a qualified technician or licensed tradesperson.
Proper installation is critical for performance, sanitation, and warranty coverage.

Preparing these items in advance helps prevent installation delays, protects your equipment, and ensures optimal ice production from day one.

At the time of delivery:

Inspect the shipment before signing the Bill of Lading
If visible damage is present, note it clearly on the Bill of Lading
If damage is significant and you are not willing to accept the unit, the shipment should be refused at delivery
If any damage is observed, document it with clear photos, as this helps us work quickly with the freight carrier to support resolution

After unpacking:

If concealed damage is discovered after opening the packaging, contact Noriota immediately
Do not discard packaging until the unit has been fully inspected and confirmed free of damage
Document any concealed damage with clear photos, as timely documentation helps us assist with carrier coordination
Confirm the model number, serial number, and rating label match your order.
Keep the user manual and documentation accessible for installation and future reference.

In all cases of shipping damage, whether visible or concealed, please contact Noriota immediately upon discovery so we can assist with next steps and carrier coordination.

This ice machine is covered by a limited manufacturer’s warranty.

1 year parts and labour for normal residential or commercial use
Additional 4 years compressor parts-only coverage, for a total of 5 years from the date of installation

The extended compressor warranty applies to defects in materials or workmanship of the sealed refrigeration compressor and is provided on a parts-only basis after the first year.

Full terms, conditions, exclusions, and claim procedures are outlined in our warranty policy.

Register your product to activate warranty coverage: Warranty Registration

View the full warranty policy

Shipping

Orders ship directly from our warehouse in Bolton, Ontario using the most appropriate delivery method based on the product and destination.

Most in-stock orders are prepared for shipment within 1–2 business days. Delivery times vary by item type and location. Larger items may ship via freight and are typically delivered curbside.

Tracking information will be provided once your order ships. Delivery appointments may be required for certain shipments.

Please inspect all deliveries upon arrival and notify us promptly of any damage or missing items.

Returns

Returns are accepted within 30 days of receipt for unused products in original packaging.

Original shipping charges are non-refundable. Customers are responsible for return shipping costs. A restocking fee may apply to non-defective returns.

If your item arrives defective or incorrect, please contact us so we can assist.

Specification Sheet (PDF)
