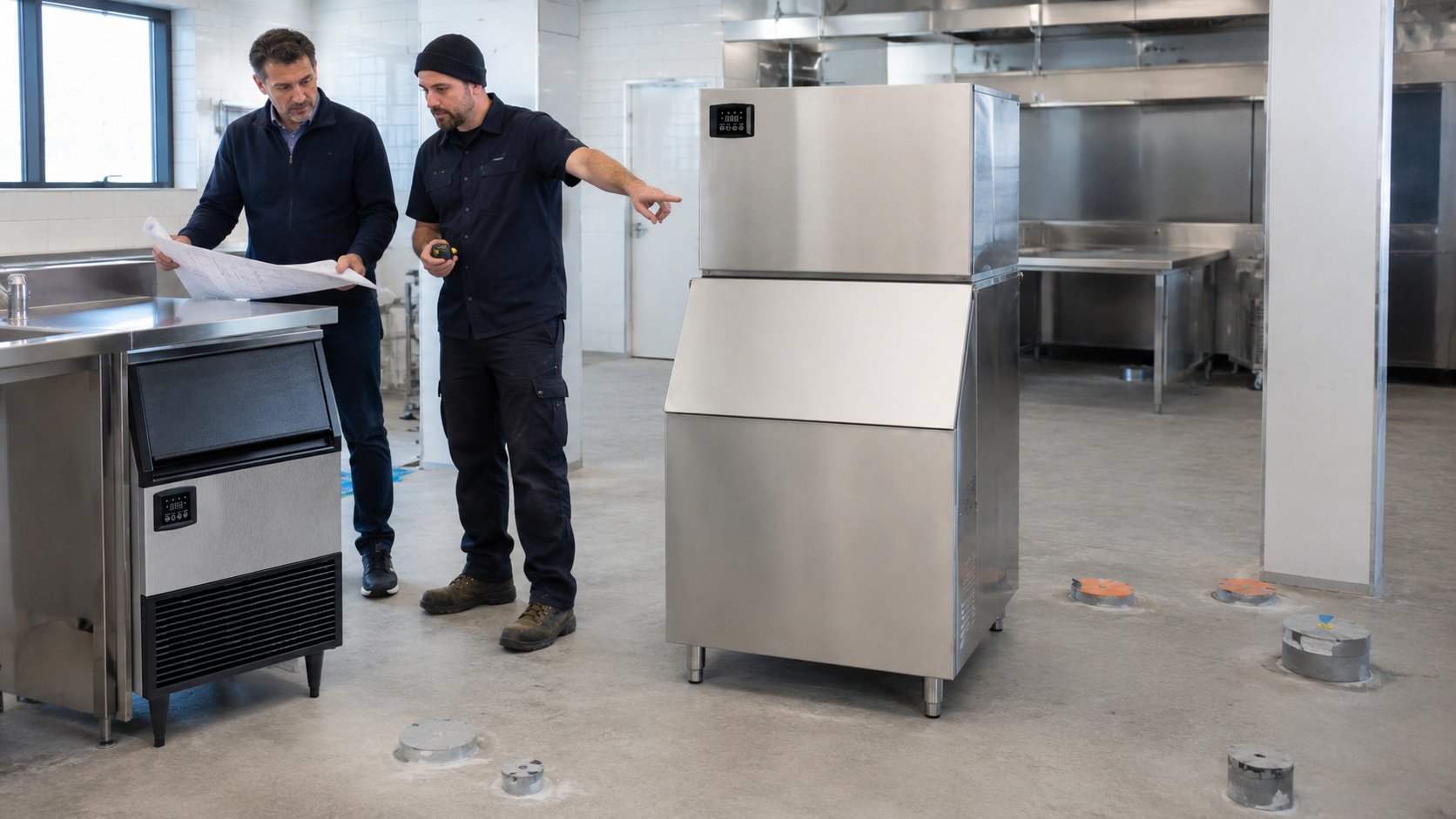

Commercial Ice Machine Installation Planning in Canada: Water, Drainage, Power, Ventilation & Clearances

The short answer

A commercial ice machine is ready to order only when the exact model has a coordinated site plan for water, drainage, electrical power, airflow, physical access, delivery, and commissioning. A nearby sink, receptacle, and floor drain do not prove that the site is ready.

For Canadian operators, the safest planning method is to build a one-page site-readiness packet before equipment is released for delivery. It should identify the machine and bin, attach the current installation instructions, show the utility connection points and drain destination, record the available route and dimensions, name the qualified trades responsible for each connection, and assign the final start-up checks.

This article is a planning resource, not an installation manual or code interpretation. Requirements can vary by model, province, territory, municipality, building, and authority having jurisdiction. The current manual and rating label for the exact machine, together with the instructions of qualified local trades and authorities, remain controlling.

Why ice machine installations fail before the machine arrives

Most preventable problems are coordination problems. The machine may fit on the floor plan but not through the doorway. The drain may be close but too high for the route available. The electrical supply may exist but not match the rating label. A wall or adjacent appliance may leave no room for the airflow or service access required by the manual. No single issue looks complicated until delivery day, when several trades, a busy kitchen, and an expensive piece of equipment are waiting on one another.

An ice machine also combines food-contact equipment, water, drainage, electricity, heat rejection, and routine sanitation in one location. Treating those subjects as separate checklist items misses the relationships between them. Moving the machine to improve a drain route can change airflow. Adding a filter can change the service envelope. Raising equipment to create drain fall can affect stability, bin alignment, and working height. Enclosing a unit to improve appearance can make cleaning or servicing difficult.

The information that matters is therefore not simply whether each utility exists. It is whether the exact machine can be delivered, installed, operated, cleaned, and serviced in that exact location.

Start with a site-readiness packet

Create the packet before finalizing the purchase order. For a replacement project, do not assume the old connection points will suit the new machine. For a renovation or new build, issue the packet early enough for the plumber, electrician, equipment supplier, general contractor, and operator to resolve conflicts while changes are still practical.

At minimum, record:

• exact machine, bin, dispenser, and accessory identifiers;
• current installation, operation, and maintenance documents;
• rating-label electrical information;
• equipment dimensions, required clearances, and connection locations;
• potable-water source, shutoff location, treatment components, and service space;
• drain type, discharge point, route, fall, and local compliance decision;
• airflow direction, heat-rejection plan, and permitted ambient conditions;
• finished floor or support condition and levelling method;
• delivery path, turning space, lifting plan, and final placement;
• cleaning and service access;
• responsible installer and qualified trades; and
• commissioning owner, acceptance checks, and staff handoff.

Mark uncertain items as open decisions, not assumptions. A packet with three clearly assigned questions is more useful than a completed-looking checklist built on guesses.

Plan water as a food-safety and service system

Ice is food. The water feeding the machine must be suitable for its intended use, and the installation needs enough dependable supply for the equipment to operate as intended. Canadian Food Inspection Agency guidance emphasizes safe water, appropriate treatment where necessary, and protection of ice from contamination. The exact connection, pressure, temperature, and treatment requirements must come from the current manual for the selected machine.

Confirm the source and shutoff

Identify the potable-water line and provide an accessible shutoff in the location required by the project and equipment instructions. “Accessible” should mean staff or a technician can reach it without moving a loaded machine or dismantling finished construction. Label it during commissioning so the correct valve can be found quickly during service or a leak.

Have the qualified plumber confirm the connection method, backflow protection, materials, and any local requirements. Do not select fittings from a product photo or from a different model. A family resemblance is not a specification.

Treat filtration as a planned component

Water treatment is not a decorative add-on. Its suitability depends on the incoming water, the selected machine, and the manufacturer’s instructions. A filter body also needs mounting space, clearance for cartridge changes, an isolation plan, and a replacement schedule. If the site uses other treatment equipment, confirm how it affects the ice machine and whether the manufacturer permits the arrangement.

Avoid promises that a filter will solve every water-related issue. Sediment, scale-forming minerals, taste and odour concerns, disinfectant chemistry, and microbiological risks are different questions. Use water information and the exact equipment guidance to choose an appropriate treatment plan. Record the cartridge or treatment component in the maintenance program so it does not disappear from responsibility after installation.

Make the water route serviceable

Keep the route protected from damage, excessive heat, kinking, and positions that make inspection difficult. Leave enough controlled movement for service where the manual and local practice permit it, without creating loose tubing that can be pinched when the machine is returned to position. Before handoff, inspect every connection under operating conditions and confirm that the shutoff actually controls the intended line.

Resolve drainage before fixing the machine location

Drainage is often the constraint that decides whether a proposed location works. Many commercial ice machines and bins rely on gravity drainage. Gravity does not negotiate with a finished floor: the discharge route needs continuous fall, without rises, traps created by sagging hose, kinks, or restrictions that hold water.

The current equipment instructions determine the drain connection points and routing limits. A qualified plumber and the local authority determine the compliant receiving method, including indirect waste, air-gap, backflow, and plumbing-code details. These decisions are jurisdiction- and site-dependent, so a national article should not prescribe one universal arrangement.

Draw the drain in elevation, not only in plan

A top-down drawing can show that a floor drain is nearby while hiding that its inlet or connecting route is too high. Add a simple side view with:

• the finished-floor elevation;
• the machine and bin drain outlet elevations;
• the proposed receiving point;
• the route length and changes in direction;
• the required fall confirmed by the plumber; and
• any obstructions, curbs, walls, or floor construction.

For a modular machine on a storage bin, verify every required drain connection. Do not assume the machine head and bin share one connection unless the exact instructions permit it. Keep drain lines identifiable and accessible enough to inspect and clean as required.

Do not design around an improvised fix

Operator discussions repeatedly describe equipment lifted on makeshift platforms, hoses routed uphill, and drains cleared only after overflow or shutdown. Those stories are useful warnings, but they are not technical authorities. The planning lesson is to prove the route before delivery.

If gravity cannot work in the chosen location, stop and reassess. A manufacturer-approved pump option, another machine configuration, or a different location may be possible, but it must be verified for the exact equipment and local installation. Do not assume an aftermarket pump turns any location into a suitable one.

Verify electrical power from the rating label

Commercial ice machine families may include different electrical configurations. The exact voltage, frequency, phase, current, circuit protection, connection method, and grounding requirements must be verified from the current manual and rating label for the machine being supplied.

Provide that information to the electrician before rough-in and again before final connection. Do not rely on the previous machine, a web-category description, a model number pattern, or a receptacle that happens to be nearby. In Ontario, for example, the Electrical Safety Authority directs consumers to hire a Licensed Electrical Contractor for electrical work. Other provinces and territories have their own oversight and trade requirements.

The electrical plan should also account for:

• the connection location after the machine is in its final position;
• safe access to disconnecting means where required;
• protection from water, cleaning activity, and physical damage;
• cord or conduit routing that does not block vents or service panels; and
• any associated bin, dispenser, drain pump, or accessory that has a separate electrical demand.

During commissioning, verify the supplied equipment against the documents and label before energizing it. A late substitution or model change should reopen the utility review.

Give heat and airflow somewhere to go

An air-cooled ice machine moves heat into the room. If its intake or discharge is blocked, or if hot discharge air is pulled back into the intake, the machine may operate outside the conditions anticipated by the manufacturer. A location that looks generous when empty can become restrictive after shelving, cartons, wall panels, or neighbouring equipment are installed.

Use the exact manual to identify airflow direction, required clearances, permitted ambient conditions, and restrictions on enclosure. Do not publish or apply a generic clearance number across a product category. Some equipment uses front airflow; other configurations differ. Even when an opening appears to be at the front, the complete clearance and ambient requirements remain model-specific.

Walk the proposed location during a representative operating period. Consider heat from cooking equipment, dishwashing, refrigeration condensers, direct sun, seasonal room conditions, and changes to the building’s ventilation. Confirm that staff will not store boxes, bins, towels, or chemicals against ventilation openings.

For remote or water-cooled configurations, if applicable to the selected equipment, involve the appropriate designer and trades. Their condenser, water, piping, and controls requirements are separate engineering questions, not details to infer from an air-cooled installation.

Plan clearances for operation, cleaning, and service

“It fits” is not the same as “it is maintainable.” Record three envelopes on the layout:

1. Installed envelope: the machine, bin, legs or stand, accessories, and required operating clearances.
2. Working envelope: space to open doors, remove ice safely, change filters, clean food-contact areas, and reach routine controls.
3. Service envelope: space to remove panels and components or move the machine as described by the manufacturer.

Check overhead conditions as well as the floor footprint. A modular head must be compatible with and correctly supported on its bin or dispenser. Confirm the approved combination, adapter or mounting requirements, alignment, and final stability from authoritative product documents.

The support surface must be capable of carrying the complete installed load and remain stable when the bin contains ice. Have the project team account for equipment, stored ice, accessories, and service activity. Level the equipment using the specified method. Levelling is not cosmetic: it can affect doors, drainage, ice distribution, and the relationship between machine and bin.

Cleaning access deserves its own review. If staff cannot reach the bin interior, food zone, air filter, condenser area, water treatment components, and surrounding floor or wall surfaces as required, sanitation will become slower and more likely to be deferred. Ask the person who will actually clean the machine to review the location before it is approved.

Measure the delivery path, not just the destination

Measure the crated and uncrated equipment dimensions from current shipping information, then walk the full route from unloading point to final position. Record:

• dock, curb, or delivery-zone constraints;
• door widths and heights;
• elevator size, capacity, and booking rules;
• corridor turns and pinch points;
• stairs, thresholds, ramps, and floor protection;
• ceiling obstructions;
• equipment needed for safe lifting and placement; and
• whether doors, panels, or packaging may be removed, and by whom.

Confirm how the machine must be transported. If equipment has been tilted or laid down contrary to preferred handling, follow the manufacturer’s instructions before start-up. Do not invent a universal settling time.

Plan the final few centimetres. Connections should not be crushed when the machine is moved into position, and the installer must be able to inspect them before closing the service space. For a modular assembly, lifting the head onto a bin requires a safe handling plan and enough overhead and working room.

Assign commissioning before installation day

Commissioning is the controlled transition from construction work to food-production equipment. Name one person to coordinate it. That person does not replace licensed trades or the manufacturer’s authorized service requirements; they make sure the required participants and records are present.

Use the exact manual to create the start-up checklist. Typical planning categories include:

• model and rating-label verification;
• shipping-damage inspection;
• stable, level, correctly assembled equipment;
• open and leak-free water supply;
• free and correctly routed drainage;
• unobstructed airflow and acceptable room conditions;
• correct electrical connection;
• cleaning and sanitizing steps required before use;
• initial operating-cycle observation;
• disposal of initial ice as directed by the manual;
• staff instruction on safe ice handling and routine cleaning; and
• recording installer, date, documents, warranty information, and baseline observations.

Do not accept “it makes ice” as the only test. Observe drainage and water connections through operation, listen for abnormal conditions, and verify that the machine can be cleaned and serviced without immediately undoing the installation.

A practical pre-installation sequence

Put decisions on one coordinated drawing

The best handoff document is not a collection of separate trade sketches. Use one current plan and elevation that show the final machine position, connection points, utility routes, shutoffs, drain destination, ventilation openings, filter service space, door movement, and maintenance envelope. Add document dates and revision numbers so an installer does not build from an obsolete layout.

Hold a short readiness review with the operator, supplier, plumber, electrician, and project lead. Where building ventilation, structural support, fire separation, or a remote condenser is involved, include the appropriate designer or trade. Ask each participant to confirm both their own scope and the boundary with the next person’s work. For example, the plumber may establish the compliant drain receptor while the equipment installer supplies the machine connection specified by the manufacturer.

Record permits, inspections, and approvals required by the province, territory, municipality, building owner, or authority having jurisdiction. A national planning guide cannot replace those local decisions. It can ensure the questions are asked while there is still time to act on the answers.

Six planning mistakes worth preventing

1. Reusing the old rough-in without checking the new model

A replacement machine may have different connection positions, electrical requirements, drainage needs, airflow, or service access. Verify the new unit from its own documents.

2. Treating a nearby drain as a workable drain

Horizontal distance is only part of the problem. Confirm outlet elevation, receiving-point elevation, continuous fall, routing, and the locally compliant discharge method before choosing the location.

3. Adding filtration without service space

A cartridge that cannot be changed without moving the machine will be neglected. Show the filter, shutoffs, bypass arrangement if permitted, and cartridge-removal envelope on the drawing.

4. Designing to the cabinet dimensions alone

The true space includes required clearances, door movement, airflow, cleaning reach, panel removal, utilities, and the technician’s working room.

5. Letting late model substitutions bypass review

If the model, bin, condenser type, or accessory changes, revalidate the entire packet. Similar names and appearances do not guarantee matching requirements.

6. Leaving commissioning ownership vague

When everyone assumes someone else will perform the final checks, leaks, blocked airflow, incorrect settings, and incomplete staff handoff can survive until the first failure. Name the coordinator and acceptance criteria in advance.

Make the purchase decision with the site, not apart from it

Installation planning should influence equipment selection. If a location cannot provide the verified drain route, electrical supply, airflow, clearances, support, or service access for one configuration, a different location or machine type may be the better operational choice.

Estimate demand before settling on a machine. NORIOTA’s commercial ice machine sizing guide helps frame production and storage needs. Then review the current commercial ice machine collection and obtain the exact product documents needed for the site-readiness packet.

The goal is not merely to connect a machine. It is to create an installation that can drain, breathe, be cleaned, be serviced, and keep supporting the operation after the contractors leave.
