Tube Fryer vs Open Pot Fryer | Commercial Gas Fryer Guide

Choosing between a tube fryer vs open pot fryer is not just an equipment preference. It affects oil life, cleaning labour, menu flexibility, product consistency, and how well your fryer holds up under daily commercial use.

Both fryer styles are common in restaurants, hotels, cafeterias, bars, takeout kitchens, schools, institutions, and other foodservice operations. Both can fry at typical operating temperatures around 175 °C to 190 °C (350 °F to 375 °F). The difference is how each fryer heats the oil and how each frypot handles crumbs, batter, flour, moisture, and sediment during service.

The quick answer is simple:

·       Choose a tube fryer for high-sediment foods such as hand-breaded chicken, battered fish, onion rings, mozzarella sticks, and flour-dredged proteins.

·       Choose an open pot fryer for lower-sediment foods such as frozen french fries, pre-breaded appetizers, wings, hash browns, and similar frozen or par-fried items.

The better answer is more practical. The right fryer depends on what you cook, how much sediment your menu creates, how often staff filter oil, how much cleaning labour you can realistically enforce, and whether the fryer will sit under a properly designed commercial hood system.

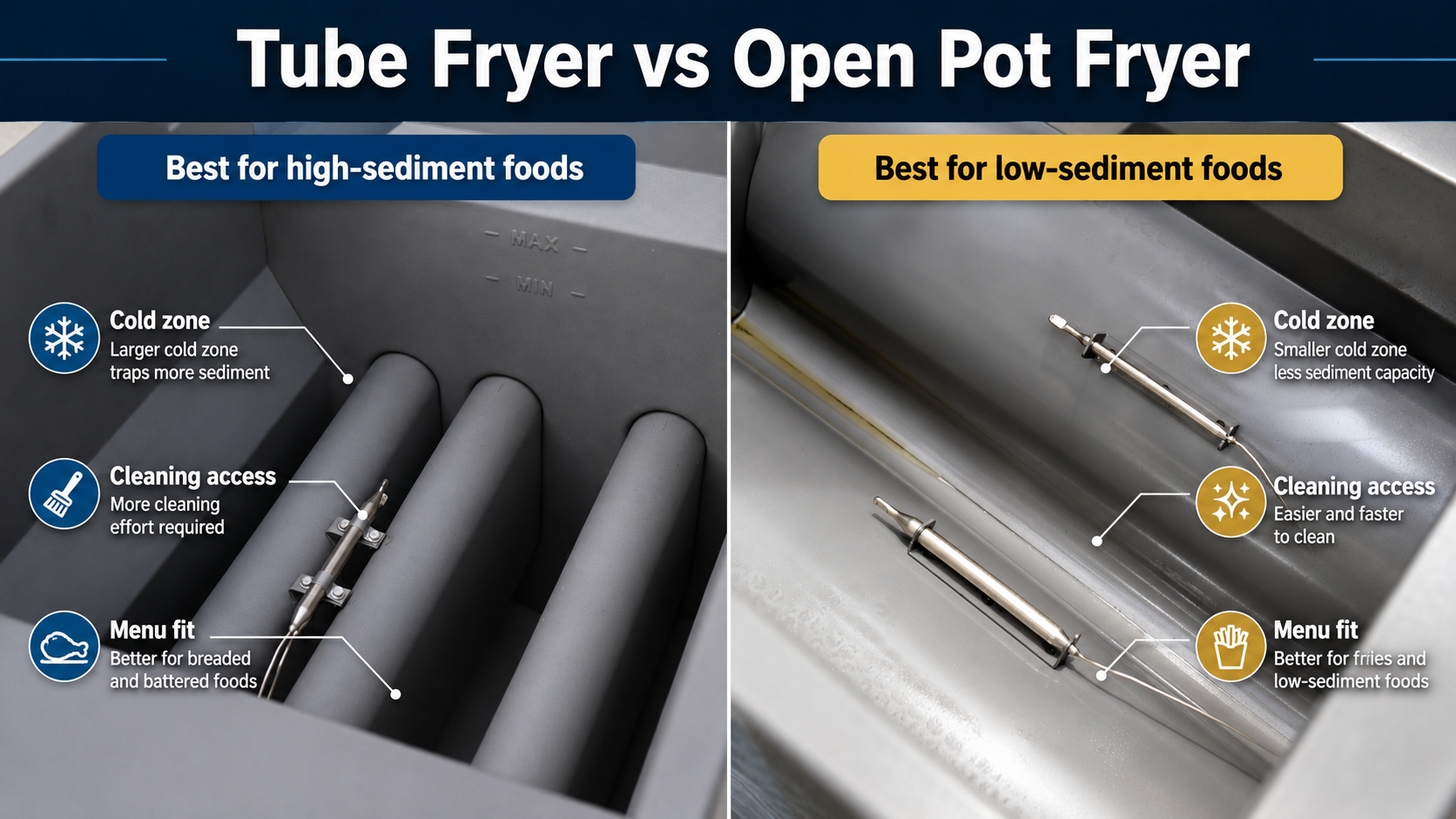

What Is the Main Difference Between a Tube Fryer and an Open Pot Fryer?

A tube fryer uses burner tubes that run through the oil inside the frypot. An open pot fryer keeps the frypot interior mostly unobstructed and applies heat from outside the frypot walls.

That design difference changes three major things:

·       Where the heat enters the oil

·       How much sediment the fryer can tolerate

·       How difficult the frypot is to clean

Operators often compare fryers by oil capacity, BTU input, basket size, price, or brand. Those details matter, but they do not answer the most important question: does the fryer design match the menu?

A high-volume fry program built around breaded chicken has different needs than a bar menu built around frozen fries and wings. Buying the wrong frypot style can increase oil waste, leave burnt crumbs in finished food, and make closing procedures harder than they need to be.

How a Tube Fryer Works

A tube fryer has hollow metal tubes running horizontally through the frypot. Gas burners fire into these tubes, and the tube walls transfer heat into the surrounding oil.

The tubes sit above the bottom of the frypot, which leaves a deeper lower area beneath them. That lower area is the cold zone. It is cooler than the active frying area and gives crumbs, flour, breading, and batter a place to settle.

For high-sediment menus, this matters. Loose flour and breading can fall away from food during frying. If that debris sits in the hottest part of the oil, it burns. Burnt sediment darkens the oil, creates bitter flavours, and leaves black specks on fried food.

In a tube fryer, much of that sediment can fall below the heating tubes into the colder lower zone. It still needs to be removed through proper filtering and cleaning, but it is less likely to scorch immediately during active frying.

Where Tube Fryers Usually Fit Best

Tube fryers are usually the better fit for menus with heavy breading or loose coating, including:

·       Hand-breaded chicken

·       Southern-style fried chicken

·       Hand-battered fish

·       Onion rings

·       Mozzarella sticks

·       Flour-dredged seafood

·       Scratch-breaded appetizers

·       High-sediment mixed fry programs

The trade-off is cleaning access. Tubes create obstructions inside the frypot. Staff need to clean around and under them. If that cleaning is skipped or rushed, carbon and grease can build up on the tube surfaces and in the cold zone.

How an Open Pot Fryer Works

An open pot fryer has a smoother, more open frypot interior. Instead of burner tubes passing through the oil, heat is applied from the outside walls of the frypot. The lower section is commonly shaped to create a smaller sediment collection area.

Because there are no internal tubes blocking the vat, open pot fryers are generally easier to wipe down after draining. That is a real advantage in kitchens where closing labour is tight or staff compliance is inconsistent.

The downside is sediment capacity. Open pot fryers usually have a smaller cold zone than tube fryers. That smaller sediment area works well for low-sediment foods, but it can be overwhelmed quickly by scratch breading, loose batter, or flour-heavy products.

Where Open Pot Fryers Usually Fit Best

Open pot fryers are usually a better fit for lower-sediment menus, including:

·       Frozen french fries

·       Hash browns

·       Frozen appetizers

·       Pre-breaded chicken products

·       Chicken wings

·       Tortilla chips

·       Lightly breaded frozen items

·       High-volume frozen side programs

Open pot fryers also make sense where cleaning speed is a major priority. The smooth vat gives staff better access to the frypot walls and bottom during filtering, wiping, and boil-out procedures.

The Cold Zone: Why Fryer Sediment Management Matters

The cold zone is one of the most important differences between fryer styles. It is the lower area of the frypot where oil is cooler than the active cooking zone. Sediment settles there during frying.

That sediment can include:

·       Flour

·       Breading

·       Wet batter drips

·       Small food particles

·       Seasoning residue

·       Ice crystals and moisture from frozen product

·       Carbonized crumbs from previous batches

Frying oil breaks down through heat, oxygen, moisture, food particles, and repeated use. Food science research on deep-fat frying describes chemical changes such as hydrolysis, oxidation, and polymerization during repeated heating and frying. These changes affect oil colour, viscosity, foaming, smoke, flavour, and food quality. Deep-fat frying oil research explains these chemical degradation pathways in more detail.

Operators do not need to be chemists to understand the practical result. When crumbs burn, oil gets darker faster. Food tastes heavier. Smoke and odour increase. Fried product loses the clean, crisp profile customers expect.

Tube Fryer Cold Zone

A tube fryer usually provides a larger cold zone beneath the burner tubes. This helps protect oil from immediate sediment scorching when the menu produces a lot of loose coating.

This is why tube fryers are commonly associated with breaded chicken and battered foods. The cold zone gives heavy debris a place to fall away from the hottest cooking area.

Open Pot Fryer Cold Zone

An open pot fryer usually has a smaller sediment zone. That is acceptable for low-sediment foods, but it is less forgiving when the menu produces loose flour, crumbs, or batter.

If the sediment zone fills up, debris can remain closer to the hot frypot walls and active oil area. That can accelerate oil darkening and increase burnt residue in the vat.

Do Not Confuse Open Pot Fryers With Flat-Bottom Fryers

Open pot fryers and flat-bottom fryers are not the same thing.

A flat-bottom fryer has a wide, shallow frypot floor and little to no meaningful cold zone. This design is used for certain floating or delicate foods that should not drop into a basket or settle into a deep cold zone.

Flat-bottom fryers are commonly associated with items such as:

·       Donuts

·       Funnel cakes

·       Tempura

·       Delicate wet-batter products

·       Specialty floating fried items

For most restaurant operators comparing gas floor fryers, the practical choice is between tube and open pot designs. Flat-bottom fryers are more specialized and should not be treated as a general substitute for either one.

Menu-Based Fryer Selection Guide

The most reliable way to choose a fryer is to start with the menu. Do not start with BTU input alone. A powerful fryer with the wrong frypot design can still create oil problems if the menu produces heavy sediment.

Which Fryer Is Easier to Clean?

Open pot fryers are generally easier to clean because the frypot interior is smoother and less obstructed. Once oil is drained, staff can access the vat walls and bottom more easily.

Tube fryers require more deliberate cleaning. The tubes sit inside the frypot, so staff must clean around them and below them. This is not complicated, but it is less forgiving. If staff do not use the correct brushes and do not remove sediment from the cold zone, buildup can remain hidden below or behind the tubes.

This matters because the best fryer on paper can perform poorly if the cleaning process is too hard for the kitchen to execute consistently.

Cleaning Reality in Commercial Kitchens

In a perfect kitchen, every fryer is skimmed, filtered, wiped, boiled out, and maintained exactly on schedule. Real kitchens are not perfect.

Closing staff are tired. Labour is expensive. Rush periods run long. If a cleaning task is slow or awkward, it is more likely to be skipped or done badly.

That does not mean tube fryers are a bad choice. It means tube fryers need a kitchen culture that takes fryer maintenance seriously. For breaded chicken, battered fish, or high-sediment menus, that extra cleaning effort is often worth it. For frozen fries and low-sediment appetizers, an open pot fryer may reduce unnecessary cleaning burden.

Oil Life: Fryer Design Helps, But Filtration Still Matters

A fryer’s cold zone can help protect oil from sediment scorching, but fryer design alone will not save poorly managed oil.

Oil life depends on several factors:

·       Food type

·       Sediment load

·       Moisture from frozen product

·       Oil temperature discipline

·       Skimming frequency

·       Filtration frequency

·       Top-off practices

·       Boil-out discipline

·       How long the fryer idles at temperature

·       Whether different foods share the same oil

Filtration removes crumbs and fine particles before they continue breaking down in the oil. It also helps maintain cleaner flavour and appearance. It does not make old oil new again, and it does not correct unsafe or badly degraded oil.

Common Signs Fryer Oil Needs Attention

Operators should watch for practical quality signs, including:

·       Dark oil colour

·       Persistent smoke at normal frying temperature

·       Foaming that does not quickly settle

·       Sticky or greasy finished food

·       Bitter or stale flavour

·       Heavy odour

·       Excess black specks on fried product

·       Longer cook times or poor browning

For higher-volume operations, oil test strips, handheld oil-quality meters, or a formal oil management program may be useful. For smaller operators, disciplined skimming, filtering, temperature control, and visual checks still make a major difference.

Performance Terms Buyers Should Understand

Commercial fryer specifications can be confusing. Buyers often focus on BTU input because it is easy to compare, but BTU input does not tell the whole story.

The ASTM F1361 fryer performance test method covers evaluation of energy consumption and cooking performance for open vat fryers, including information that can help foodservice operators understand fryer efficiency and production capacity.

The U.S. Department of Energy’s Federal Energy Management Program also defines two useful fryer performance terms: cooking energy efficiency, which compares energy absorbed by food to total fryer energy use, and idle energy rate, which measures energy used while the fryer is holding at a stabilized operating temperature. DOE FEMP fryer guidance explains these terms.

BTU Input

BTU input tells you how much gas energy the fryer is designed to consume. Higher BTU input can support faster recovery, but only if the fryer transfers that heat efficiently into the oil and food.

Recovery Time

Recovery time describes how quickly the fryer returns to set temperature after a basket load drops the oil temperature. Good recovery matters during lunch rushes, bar service, and high-volume batch cooking.

Oil Capacity

Oil capacity affects batch size, recovery, and oil cost. More oil can provide a larger thermal buffer, but it also costs more to fill and replace. Less oil may reduce fill cost, but it can be less forgiving if the fryer is overloaded.

Production Capacity

Production capacity is the real-world question: how much food can the fryer produce during peak demand while maintaining product quality? This depends on frypot design, oil volume, heat transfer, controls, basket loading, and staff discipline.

Gas Type, Installation, and Ventilation

Commercial gas fryers must be matched to the correct gas type and installed correctly. Natural gas and liquid propane are not interchangeable without proper factory configuration or approved conversion procedures performed by a qualified technician.

In Canada, gas appliance installation requirements are governed by applicable codes, provincial rules, local authorities, and the appliance manufacturer’s certified installation instructions. The CSA B149 series provides Canadian code guidance for natural gas and propane installations.

Commercial fryers also create heat, grease-laden vapours, and fire risk. The NFPA 96 standard addresses ventilation control and fire protection for commercial cooking operations. In practice, operators should coordinate fryer installation with qualified gas, ventilation, fire suppression, and local code professionals.

Before Buying a Commercial Gas Fryer, Confirm These Items

·       Correct gas type: natural gas or liquid propane

·       Available gas supply and pressure

·       Proper hood coverage

·       Fire suppression compatibility

·       Required clearances

·       Floor strength and levelling

·       Drain access for oil handling and boil-outs

·       Whether electrical power is required for controls or filtration accessories

·       Local inspection requirements

·       Service access for cleaning and maintenance

Do not treat gas fryer installation as a casual plug-and-play equipment swap. Incorrect gas type, poor combustion, inadequate ventilation, or improper fire suppression coordination can create serious safety and compliance problems.

Sanitation and Certification Considerations

Commercial cooking equipment should be designed for cleanability, durability, and foodservice use. NSF explains that NSF/ANSI 4 establishes minimum food protection and sanitation requirements for materials, design, construction, and performance of commercial cooking, rethermalization, and hot food holding and transport equipment.

For fryer buyers, sanitation listing is not a substitute for cleaning. It does not mean the fryer stays clean by itself. It means the equipment design has been evaluated against a commercial sanitation standard. Operators still need proper filtering, boil-outs, exterior cleaning, grease control, and maintenance procedures.

Common Buyer Mistakes

Choosing by Price Only

A lower purchase price can disappear quickly if the fryer wastes oil, slows production, or creates cleaning problems. Match the frypot style to the menu first, then compare price.

Using an Open Pot Fryer for Heavy Scratch Breading

Open pot fryers can work very well for low-sediment items, but heavy breading can overwhelm the smaller sediment zone. If fried chicken or battered fish is the core menu item, a tube fryer usually makes more operational sense.

Buying a Tube Fryer Without Enforcing Cleaning Discipline

Tube fryers tolerate high sediment better, but they are not self-cleaning. If staff do not filter, brush below the tubes, and remove buildup, oil quality and heat transfer will suffer.

Ignoring Oil Capacity

Oil capacity affects fill cost, recovery, and batch performance. A fryer that is too small for the menu will be overloaded. A fryer that is too large may waste oil and energy during slow periods.

Mixing Strong-Flavour Foods in the Same Oil

Fish, heavily seasoned wings, gluten-free items, and allergen-sensitive foods may require separate oil pools or dedicated procedures. Fryer type does not solve flavour transfer or allergen-control problems by itself.

Where Noriota Fits

NORIOTA’s gas floor fryer lineup supports operators comparing tube-style and open pot fryer categories for commercial kitchen use.

The purpose of this guide is not to push one fryer design as universally better. There is no universal winner. A fryer used for hand-breaded chicken faces a different job than a fryer used mainly for frozen fries. A kitchen with disciplined oil filtration has different needs than one trying to simplify closing labour.

For most operators, the best buying decision comes down to menu sediment, oil management, cleaning access, available utilities, and peak production demand. Once those are clear, selecting the right gas floor fryer category becomes much easier.

Final Recommendation

Choose a tube fryer if your menu produces heavy sediment. That includes hand-breaded chicken, battered fish, onion rings, scratch-breaded appetizers, and flour-dredged proteins. The larger cold zone gives debris a better place to settle before it scorches.

Choose an open pot fryer if your menu is built around lower-sediment foods. That includes frozen fries, wings, hash browns, frozen appetizers, and similar products. The smoother frypot is easier to clean and can reduce closing labour.

If your menu is mixed, do not force one fryer to do everything. Consider separate vats, dedicated fryers, or a combination of fryer types. The right setup protects oil quality, reduces flavour transfer, improves consistency, and makes daily kitchen operation easier.

Frequently Asked Questions

Is a tube fryer or open pot fryer better for fried chicken?

A tube fryer is usually the better choice for hand-breaded or flour-dredged fried chicken because it has a larger cold zone beneath the burner tubes. That gives loose breading and flour a place to settle away from the hottest oil, which can help reduce scorching and oil darkening.

Is an open pot fryer good for french fries?

Yes. An open pot fryer is often a good fit for frozen french fries and other low-sediment frozen products. These foods usually shed less debris than scratch-breaded items, and the open frypot design is easier to clean after draining.

Which commercial fryer is easier to clean?

An open pot fryer is generally easier to clean because the frypot interior is smoother and has fewer obstructions. A tube fryer can handle high-sediment foods well, but staff need to clean around and below the tubes carefully.

Does a tube fryer use more oil than an open pot fryer?

A tube fryer may require more oil than a similarly sized open pot fryer because part of the frypot volume is dedicated to the deeper cold zone beneath the burner tubes. Exact oil capacity depends on the specific fryer model, vat size, and fill line.

Can I use one fryer for chicken, fish, and fries?

You can, but it is not ideal for many operations. Chicken, fish, and seasoned foods can affect oil flavour, and breaded items can increase sediment. Separate vats or dedicated fryers are usually better when flavour control, allergen procedures, or product consistency matter.

What is the difference between an open pot fryer and a flat-bottom fryer?

An open pot fryer is a general commercial fryer style with a mostly unobstructed frypot and a smaller sediment zone. A flat-bottom fryer is a more specialized fryer with a wide shallow bottom and little to no cold zone, often used for floating items such as donuts, funnel cakes, tempura, or delicate wet-batter products.

How often should fryer oil be filtered?

Filtering frequency depends on menu type, volume, oil condition, and company procedures. High-sediment foods usually require more frequent filtering than low-sediment frozen foods. Many busy kitchens filter daily or more often, but operators should follow their food safety plan, oil management program, and equipment instructions.

Do commercial gas fryers need a hood and fire suppression system?

Most commercial gas fryer installations require proper ventilation and fire protection because fryers produce heat and grease-laden vapours. Exact requirements depend on local codes, the authority having jurisdiction, the appliance, and the kitchen layout. Operators should confirm requirements with qualified gas, ventilation, and fire protection professionals before installation.
